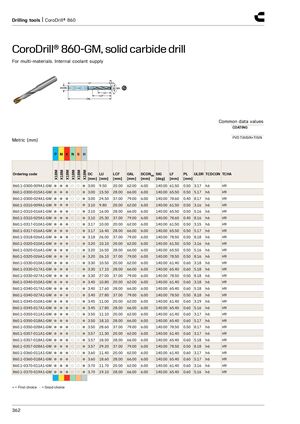

Drilling tools | CoroDrill® 860 CoroDrill® 860-GM, solid carbide drill​​ For multi-materials. Internal coolant supply Common data values COATING PVD TiAlSiN+TiSiN Metric (mm) P M K N S H X1BM X1BM X1BM X1BM X1BM X1BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0300-009A1-GM ● ● ● ○ ○ ● 3.00 9.50 20.00 62.00 6.00 140.00 61.50 0.50 3.17 h6 H9 860.1-0300-015A1-GM ● ● ● ○ ○ ● 3.00 15.50 28.00 66.00 6.00 140.00 65.50 0.50 5.17 h6 H9 860.1-0300-024A1-GM ● ● ● ○ ○ ● 3.00 24.50 37.00 79.00 6.00 140.00 78.60 0.40 8.17 h6 H9 860.1-0310-009A1-GM ● ● ● ○ ○ ● 3.10 9.80 20.00 62.00 6.00 140.00 61.50 0.50 3.16 h6 H9 860.1-0310-016A1-GM ● ● ● ○ ○ ● 3.10 16.00 28.00 66.00 6.00 140.00 65.50 0.50 5.16 h6 H9 860.1-0310-025A1-GM ● ● ● ○ ○ ● 3.10 25.30 37.00 79.00 6.00 140.00 78.60 0.40 8.16 h6 H9 860.1-0317-010A1-GM ● ● ● ○ ○ ● 3.17 10.00 20.00 62.00 6.00 140.00 61.50 0.50 3.15 h6 H9 860.1-0317-016A1-GM ● ● ● ○ ○ ● 3.17 16.40 28.00 66.00 6.00 140.00 65.50 0.50 5.17 h6 H9 860.1-0318-026A1-GM ● ● ● ○ ○ ● 3.18 26.00 37.00 79.00 6.00 140.00 78.50 0.50 8.18 h6 H9 860.1-0320-010A1-GM ● ● ● ○ ○ ● 3.20 10.10 20.00 62.00 6.00 140.00 61.50 0.50 3.16 h6 H9 860.1-0320-016A1-GM ● ● ● ○ ○ ● 3.20 16.50 28.00 66.00 6.00 140.00 65.50 0.50 5.16 h6 H9 860.1-0320-026A1-GM ● ● ● ○ ○ ● 3.20 26.10 37.00 79.00 6.00 140.00 78.50 0.50 8.16 h6 H9 860.1-0330-010A1-GM ● ● ● ○ ○ ● 3.30 10.50 20.00 62.00 6.00 140.00 61.40 0.60 3.18 h6 H9 860.1-0330-017A1-GM ● ● ● ○ ○ ● 3.30 17.10 28.00 66.00 6.00 140.00 65.40 0.60 5.18 h6 H9 860.1-0330-027A1-GM ● ● ● ○ ○ ● 3.30 27.00 37.00 79.00 6.00 140.00 78.50 0.50 8.18 h6 H9 860.1-0340-010A1-GM ● ● ● ○ ○ ● 3.40 10.80 20.00 62.00 6.00 140.00 61.40 0.60 3.18 h6 H9 860.1-0340-017A1-GM ● ● ● ○ ○ ● 3.40 17.60 28.00 66.00 6.00 140.00 65.40 0.60 5.18 h6 H9 860.1-0340-027A1-GM ● ● ● ○ ○ ● 3.40 27.80 37.00 79.00 6.00 140.00 78.50 0.50 8.18 h6 H9 860.1-0345-010A1-GM ● ● ● ○ ○ ● 3.45 11.00 20.00 62.00 6.00 140.00 61.40 0.60 3.19 h6 H9 860.1-0345-017A1-GM ● ● ● ○ ○ ● 3.45 17.80 28.00 66.00 6.00 140.00 65.40 0.60 5.16 h6 H9 860.1-0350-011A1-GM ● ● ● ○ ○ ● 3.50 11.10 20.00 62.00 6.00 140.00 61.40 0.60 3.17 h6 H9 860.1-0350-018A1-GM ● ● ● ○ ○ ● 3.50 18.10 28.00 66.00 6.00 140.00 65.40 0.60 5.17 h6 H9 860.1-0350-028A1-GM ● ● ● ○ ○ ● 3.50 28.60 37.00 79.00 6.00 140.00 78.50 0.50 8.17 h6 H9 860.1-0357-011A1-GM ● ● ● ○ ○ ● 3.57 11.30 20.00 62.00 6.00 140.00 61.40 0.60 3.17 h6 H9 860.1-0357-018A1-GM ● ● ● ○ ○ ● 3.57 18.50 28.00 66.00 6.00 140.00 65.40 0.60 5.18 h6 H9 860.1-0357-028A1-GM ● ● ● ○ ○ ● 3.57 29.20 37.00 79.00 6.00 140.00 78.50 0.50 8.18 h6 H9 860.1-0360-011A1-GM ● ● ● ○ ○ ● 3.60 11.40 20.00 62.00 6.00 140.00 61.40 0.60 3.17 h6 H9 860.1-0360-018A1-GM ● ● ● ○ ○ ● 3.60 18.60 28.00 66.00 6.00 140.00 65.40 0.60 5.17 h6 H9 860.1-0370-011A1-GM ● ● ● ○ ○ ● 3.70 11.70 20.00 62.00 6.00 140.00 61.40 0.60 3.16 h6 H9 860.1-0370-019A1-GM ● ● ● ○ ○ ● 3.70 19.10 28.00 66.00 6.00 140.00 65.40 0.60 5.16 h6 H9 ● = First choice ○ = Good choice 362
