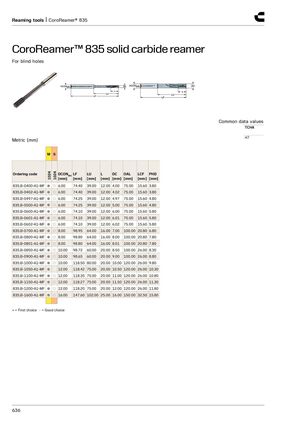

Reaming tools | CoroReamer® 835 CoroReamer™ 835 solid carbide reamer​​ For blind holes Common data values TCHA H7 Metric (mm) M S 1024 1024 Ordering code DCONMS LF LU L DC OAL LCF PHD [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 835.B-0400-A1-MF ● ○ 6.00 74.40 39.00 12.00 4.00 75.00 15.60 3.80 835.B-0402-A1-MF ● ○ 6.00 74.40 39.00 12.00 4.02 75.00 15.60 3.80 835.B-0497-A1-MF ● ○ 6.00 74.25 39.00 12.00 4.97 75.00 15.60 4.80 835.B-0500-A1-MF ● ○ 6.00 74.25 39.00 12.00 5.00 75.00 15.60 4.80 835.B-0600-A1-MF ● ○ 6.00 74.10 39.00 12.00 6.00 75.00 15.60 5.80 835.B-0601-A1-MF ● ○ 6.00 74.10 39.00 12.00 6.01 75.00 15.60 5.80 835.B-0602-A1-MF ● ○ 6.00 74.10 39.00 12.00 6.02 75.00 15.60 5.80 835.B-0700-A1-MF ● ○ 8.00 98.95 64.00 16.00 7.00 100.00 20.80 6.80 835.B-0800-A1-MF ● ○ 8.00 98.80 64.00 16.00 8.00 100.00 20.80 7.80 835.B-0801-A1-MF ● ○ 8.00 98.80 64.00 16.00 8.01 100.00 20.80 7.80 835.B-0850-A1-MF ● ○ 10.00 98.72 60.00 20.00 8.50 100.00 26.00 8.30 835.B-0900-A1-MF ● ○ 10.00 98.65 60.00 20.00 9.00 100.00 26.00 8.80 835.B-1000-A1-MF ● ○ 10.00 118.50 80.00 20.00 10.00 120.00 26.00 9.80 835.B-1050-A1-MF ● 12.00 118.42 75.00 20.00 10.50 120.00 26.00 10.30 835.B-1100-A1-MF ● ○ 12.00 118.35 75.00 20.00 11.00 120.00 26.00 10.80 835.B-1150-A1-MF ● ○ 12.00 118.27 75.00 20.00 11.50 120.00 26.00 11.30 835.B-1200-A1-MF ● ○ 12.00 118.20 75.00 20.00 12.00 120.00 26.00 11.80 835.B-1600-A1-MF ● ○ 16.00 147.60 102.00 25.00 16.00 150.00 32.50 15.80 ● = First choice ○ = Good choice 636
