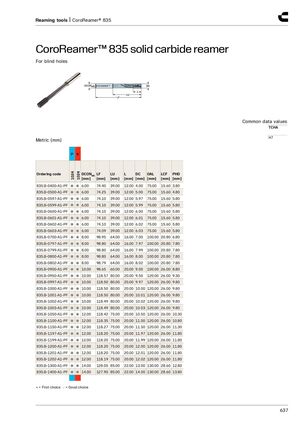

Reaming tools | CoroReamer® 835 CoroReamer™ 835 solid carbide reamer​​ For blind holes Common data values TCHA H7 Metric (mm) P K 1024 1024 Ordering code DCONMS LF LU L DC OAL LCF PHD [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 835.B-0400-A1-PF ● ● 6.00 74.40 39.00 12.00 4.00 75.00 15.60 3.80 835.B-0500-A1-PF ● ● 6.00 74.25 39.00 12.00 5.00 75.00 15.60 4.80 835.B-0597-A1-PF ● ● 6.00 74.10 39.00 12.00 5.97 75.00 15.60 5.80 835.B-0599-A1-PF ● ● 6.00 74.10 39.00 12.00 5.99 75.00 15.60 5.80 835.B-0600-A1-PF ● ● 6.00 74.10 39.00 12.00 6.00 75.00 15.60 5.80 835.B-0601-A1-PF ● ● 6.00 74.10 39.00 12.00 6.01 75.00 15.60 5.80 835.B-0602-A1-PF ● ● 6.00 74.10 39.00 12.00 6.02 75.00 15.60 5.80 835.B-0603-A1-PF ● ● 6.00 74.09 39.00 12.00 6.03 75.00 15.60 5.80 835.B-0700-A1-PF ● ● 8.00 98.95 64.00 16.00 7.00 100.00 20.80 6.80 835.B-0797-A1-PF ● ● 8.00 98.80 64.00 16.00 7.97 100.00 20.80 7.80 835.B-0799-A1-PF ● ● 8.00 98.80 64.00 16.00 7.99 100.00 20.80 7.80 835.B-0800-A1-PF ● ● 8.00 98.80 64.00 16.00 8.00 100.00 20.80 7.80 835.B-0802-A1-PF ● ● 8.00 98.79 64.00 16.00 8.02 100.00 20.80 7.80 835.B-0900-A1-PF ● ● 10.00 98.65 60.00 20.00 9.00 100.00 26.00 8.80 835.B-0950-A1-PF ● ● 10.00 118.57 80.00 20.00 9.50 120.00 26.00 9.30 835.B-0997-A1-PF ● ● 10.00 118.50 80.00 20.00 9.97 120.00 26.00 9.80 835.B-1000-A1-PF ● ● 10.00 118.50 80.00 20.00 10.00 120.00 26.00 9.80 835.B-1001-A1-PF ● ● 10.00 118.50 80.00 20.00 10.01 120.00 26.00 9.80 835.B-1002-A1-PF ● ● 10.00 118.49 80.00 20.00 10.02 120.00 26.00 9.80 835.B-1003-A1-PF ● ● 10.00 118.49 80.00 20.00 10.03 120.00 26.00 9.80 835.B-1050-A1-PF ● ● 12.00 118.42 75.00 20.00 10.50 120.00 26.00 10.30 835.B-1100-A1-PF ● ● 12.00 118.35 75.00 20.00 11.00 120.00 26.00 10.80 835.B-1150-A1-PF ● ● 12.00 118.27 75.00 20.00 11.50 120.00 26.00 11.30 835.B-1197-A1-PF ● ● 12.00 118.20 75.00 20.00 11.97 120.00 26.00 11.80 835.B-1199-A1-PF ● ● 12.00 118.20 75.00 20.00 11.99 120.00 26.00 11.80 835.B-1200-A1-PF ● ● 12.00 118.20 75.00 20.00 12.00 120.00 26.00 11.80 835.B-1201-A1-PF ● ● 12.00 118.20 75.00 20.00 12.01 120.00 26.00 11.80 835.B-1202-A1-PF ● ● 12.00 118.19 75.00 20.00 12.02 120.00 26.00 11.80 835.B-1300-A1-PF ● ● 14.00 128.05 85.00 22.00 13.00 130.00 28.60 12.80 835.B-1400-A1-PF ● ● 14.00 127.90 85.00 22.00 14.00 130.00 28.60 13.80 ● = First choice ○ = Good choice 637
