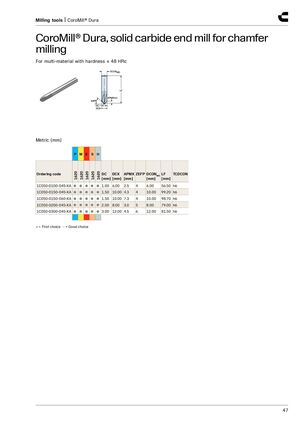

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for chamfer milling​​ For multi-material with hardness ≤ 48 HRc Metric (mm) P M K S H 1620 1620 1620 1620 1620 Ordering code DC DCX APMX ZEFP DCONMS LF TCDCON [mm] [mm] [mm] [mm] [mm] 1C050-0100-045-XA ● ● ● ● ● 1.00 6.00 2.5 4 6.00 56.50 h6 1C050-0150-045-XA ● ● ● ● ● 1.50 10.00 4.3 4 10.00 99.20 h6 1C050-0150-060-XA ● ● ● ● ● 1.50 10.00 7.3 4 10.00 98.70 h6 1C050-0200-045-XA ● ● ● ● ● 2.00 8.00 3.0 5 8.00 79.00 h6 1C050-0300-045-XA ● ● ● ● ● 3.00 12.00 4.5 6 12.00 81.50 h6 ● = First choice ○ = Good choice 47
