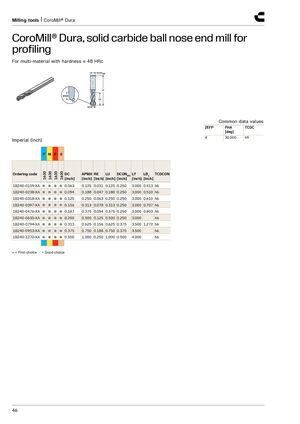

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide ball nose end mill for profiling​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP FHA TCDC [deg] 4 30.000 h9 Imperial (inch) P M K S 1630 1630 1630 1630 Ordering code DC APMX RE LU DCONMS LF LB 1 _ TCDCON [inch] [inch] [inch] [inch] [inch] [inch] [inch] 1B240-0159-XA ● ● ● ● 0.063 0.125 0.031 0.125 0.250 3.000 0.413 h6 1B240-0238-XA ● ● ● ● 0.094 0.188 0.047 0.188 0.250 3.000 0.510 h6 1B240-0318-XA ● ● ● ● 0.125 0.250 0.063 0.250 0.250 3.000 0.610 h6 1B240-0397-XA ● ● ● ● 0.156 0.313 0.078 0.313 0.250 3.000 0.707 h6 1B240-0476-XA ● ● ● ● 0.187 0.375 0.094 0.375 0.250 3.000 0.803 h6 1B240-0635-XA ● ● ● ● 0.250 0.500 0.125 0.500 0.250 3.000 h6 1B240-0794-XA ● ● ● ● 0.313 0.625 0.156 0.625 0.375 3.500 1.272 h6 1B240-0953-XA ● ● ● ● 0.375 0.750 0.188 0.750 0.375 3.500 h6 1B240-1270-XA ● ● ● ● 0.500 1.000 0.250 1.000 0.500 4.000 h6 ● = First choice ○ = Good choice 46
