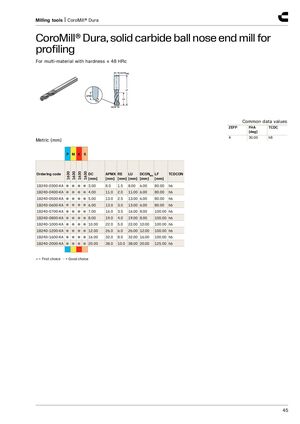

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide ball nose end mill for profiling​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP FHA TCDC [deg] 4 30.00 h8 Metric (mm) P M K S 1630 1630 1630 1630 Ordering code DC APMX RE LU DCONMS LF TCDCON [mm] [mm] [mm] [mm] [mm] [mm] 1B240-0300-XA ● ● ● ● 3.00 8.0 1.5 8.00 6.00 80.00 h6 1B240-0400-XA ● ● ● ● 4.00 11.0 2.0 11.00 6.00 80.00 h6 1B240-0500-XA ● ● ● ● 5.00 13.0 2.5 13.00 6.00 80.00 h6 1B240-0600-XA ● ● ● ● 6.00 13.0 3.0 13.00 6.00 80.00 h6 1B240-0700-XA ● ● ● ● 7.00 16.0 3.5 16.00 8.00 100.00 h6 1B240-0800-XA ● ● ● ● 8.00 19.0 4.0 19.00 8.00 100.00 h6 1B240-1000-XA ● ● ● ● 10.00 22.0 5.0 22.00 10.00 100.00 h6 1B240-1200-XA ● ● ● ● 12.00 26.0 6.0 26.00 12.00 100.00 h6 1B240-1600-XA ● ● ● ● 16.00 32.0 8.0 32.00 16.00 100.00 h6 1B240-2000-XA ● ● ● ● 20.00 38.0 10.0 38.00 20.00 125.00 h6 ● = First choice ○ = Good choice 45
