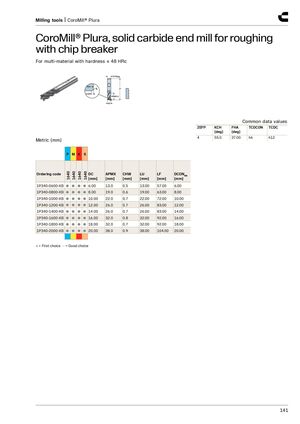

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 4 55.0 37.00 h6 h12 Metric (mm) P M K S 1640 1640 1640 1640 Ordering code DC APMX CHW LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 1P340-0600-XB ● ● ● ● 6.00 13.0 0.5 13.00 57.00 6.00 1P340-0800-XB ● ● ● ● 8.00 19.0 0.6 19.00 63.00 8.00 1P340-1000-XB ● ● ● ● 10.00 22.0 0.7 22.00 72.00 10.00 1P340-1200-XB ● ● ● ● 12.00 26.0 0.7 26.00 83.00 12.00 1P340-1400-XB ● ● ● ● 14.00 26.0 0.7 26.00 83.00 14.00 1P340-1600-XB ● ● ● ● 16.00 32.0 0.8 32.00 92.00 16.00 1P340-1800-XB ● ● ● ● 18.00 32.0 0.7 32.00 92.00 18.00 1P340-2000-XB ● ● ● ● 20.00 38.0 0.9 38.00 104.00 20.00 ● = First choice ○ = Good choice 141
