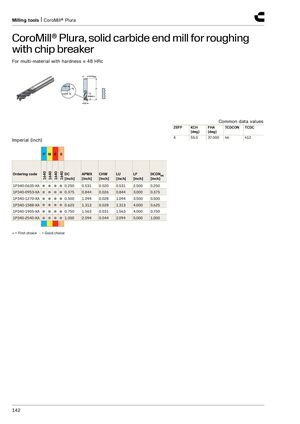

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 4 55.0 37.000 h6 h12 Imperial (inch) P M K S 1640 1640 1640 1640 Ordering code DC APMX CHW LU LF DCONMS [inch] [inch] [inch] [inch] [inch] [inch] 1P340-0635-XA ● ● ● ● 0.250 0.531 0.020 0.531 2.500 0.250 1P340-0953-XA ● ● ● ● 0.375 0.844 0.026 0.844 3.000 0.375 1P340-1270-XA ● ● ● ● 0.500 1.094 0.028 1.094 3.500 0.500 1P340-1588-XA ● ● ● ● 0.625 1.313 0.028 1.313 4.000 0.625 1P340-1905-XA ● ● ● ● 0.750 1.563 0.031 1.563 4.000 0.750 1P340-2540-XA ● ● ● ● 1.000 2.094 0.044 2.094 5.000 1.000 ● = First choice ○ = Good choice 142
