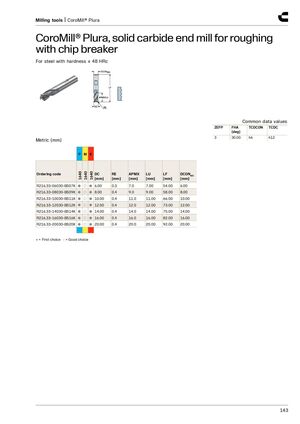

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For steel with hardness ≤ 48 HRc Common data values ZEFP FHA TCDCON TCDC [deg] 3 30.00 h6 h12 Metric (mm) P M K 1640 1640 1640 Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] R216.33-06030-BS07K ● ○ ● 6.00 0.3 7.0 7.00 54.00 6.00 R216.33-08030-BS09K ● ○ ● 8.00 0.4 9.0 9.00 58.00 8.00 R216.33-10030-BS11K ● ○ ● 10.00 0.4 11.0 11.00 66.00 10.00 R216.33-12030-BS12K ● ○ ● 12.00 0.4 12.0 12.00 73.00 12.00 R216.33-14030-BS14K ● ○ ● 14.00 0.4 14.0 14.00 75.00 14.00 R216.33-16030-BS16K ● ○ ● 16.00 0.4 16.0 16.00 82.00 16.00 R216.33-20030-BS20K ● ○ ● 20.00 0.4 20.0 20.00 92.00 20.00 ● = First choice ○ = Good choice 143
