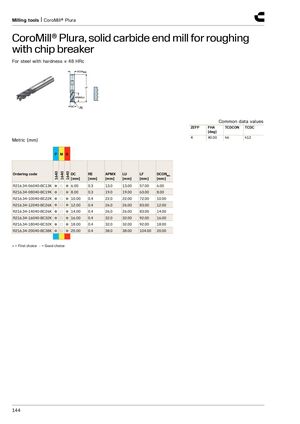

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For steel with hardness ≤ 48 HRc Common data values ZEFP FHA TCDCON TCDC [deg] 4 40.00 h6 h12 Metric (mm) P M K 1640 1640 1640 Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] R216.34-06040-BC13K ● ○ ● 6.00 0.3 13.0 13.00 57.00 6.00 R216.34-08040-BC19K ● ○ ● 8.00 0.3 19.0 19.00 63.00 8.00 R216.34-10040-BC22K ● ○ ● 10.00 0.4 22.0 22.00 72.00 10.00 R216.34-12040-BC26K ● ○ ● 12.00 0.4 26.0 26.00 83.00 12.00 R216.34-14040-BC26K ● ○ ● 14.00 0.4 26.0 26.00 83.00 14.00 R216.34-16040-BC32K ● ○ ● 16.00 0.4 32.0 32.00 92.00 16.00 R216.34-18040-BC32K ● ○ ● 18.00 0.4 32.0 32.00 92.00 18.00 R216.34-20040-BC38K ● ○ ● 20.00 0.4 38.0 38.00 104.00 20.00 ● = First choice ○ = Good choice 144
