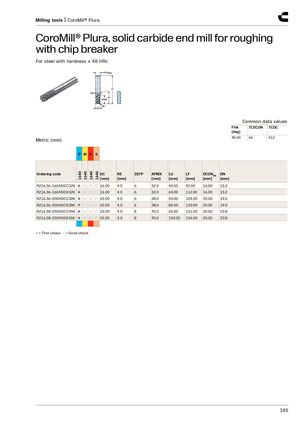

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For steel with hardness ≤ 48 HRc Common data values FHA TCDCON TCDC [deg] 45.00 h6 h12 Metric (mm) P M K S 1640 1640 1640 1640 Ordering code DC RE ZEFP APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.36-16045ICC32K ● ○ ○ ○ 16.00 4.0 6 32.0 44.00 92.00 16.00 15.2 R216.36-16045ICK32K ● ○ ○ ○ 16.00 4.0 6 32.0 64.00 112.00 16.00 15.2 R216.36-20045ICC38K ● ○ ○ ○ 20.00 4.0 6 38.0 54.00 104.00 20.00 19.0 R216.36-20045ICK38K ● ○ ○ ○ 20.00 4.0 6 38.0 80.00 130.00 20.00 19.0 R216.38-25045ICC45K ● ○ ○ ○ 25.00 4.0 8 45.0 65.00 121.00 25.00 23.8 R216.38-25045ICK45K ● ○ ○ ○ 25.00 4.0 8 45.0 100.00 156.00 25.00 23.8 ● = First choice ○ = Good choice 145
