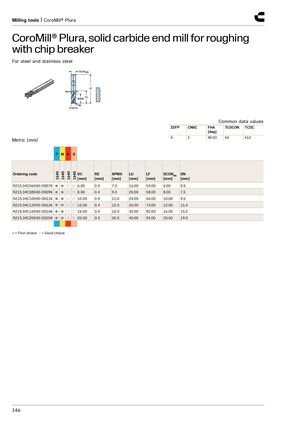

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For steel and stainless steel Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 4 1 40.00 h6 h12 Metric (mm) P M K S 1640 1640 1640 1640 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] R215.34C06040-DS07K ● ● ○ ○ 6.00 0.3 7.0 16.00 54.00 6.00 5.5 R215.34C08040-DS09K ● ● ○ ○ 8.00 0.4 9.0 20.00 58.00 8.00 7.5 R215.34C10040-DS11K ● ● ○ ○ 10.00 0.4 11.0 24.00 66.00 10.00 9.5 R215.34C12040-DS12K ● ● ○ ○ 12.00 0.4 12.0 26.00 73.00 12.00 11.4 R215.34C16040-DS16K ● ● ○ ○ 16.00 0.4 16.0 32.00 82.00 16.00 15.2 R215.34C20040-DS20K ● ● ○ ○ 20.00 0.4 20.0 40.00 92.00 20.00 19.0 ● = First choice ○ = Good choice 146
