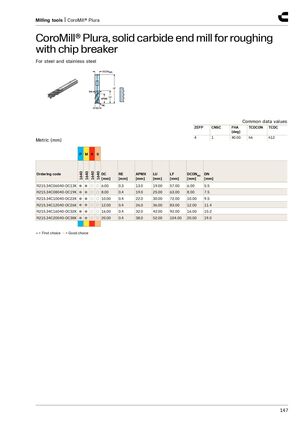

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For steel and stainless steel Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 4 1 40.00 h6 h12 Metric (mm) P M K S 1640 1640 1640 1640 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] R215.34C06040-DC13K ● ● ○ ○ 6.00 0.3 13.0 19.00 57.00 6.00 5.5 R215.34C08040-DC19K ● ● ○ ○ 8.00 0.4 19.0 25.00 63.00 8.00 7.5 R215.34C10040-DC22K ● ● ○ ○ 10.00 0.4 22.0 30.00 72.00 10.00 9.5 R215.34C12040-DC26K ● ● ○ ○ 12.00 0.4 26.0 36.00 83.00 12.00 11.4 R215.34C16040-DC32K ● ● ○ ○ 16.00 0.4 32.0 42.00 92.00 16.00 15.2 R215.34C20040-DC38K ● ● ○ ○ 20.00 0.4 38.0 52.00 104.00 20.00 19.0 ● = First choice ○ = Good choice 147
