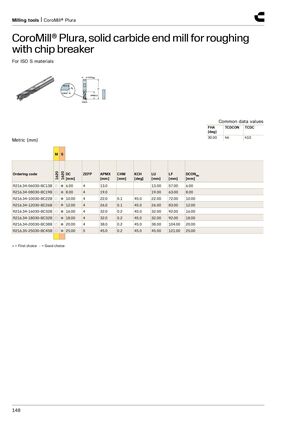

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For ISO S materials Common data values FHA TCDCON TCDC [deg] 30.00 h6 h10 Metric (mm) M S 1620 1620 Ordering code DC ZEFP APMX CHW KCH LU LF DCONMS [mm] [mm] [mm] [deg] [mm] [mm] [mm] R216.34-06030-BC13B ○ ● 6.00 4 13.0 13.00 57.00 6.00 R216.34-08030-BC19B ○ ● 8.00 4 19.0 19.00 63.00 8.00 R216.34-10030-BC22B ○ ● 10.00 4 22.0 0.1 45.0 22.00 72.00 10.00 R216.34-12030-BC26B ○ ● 12.00 4 26.0 0.1 45.0 26.00 83.00 12.00 R216.34-16030-BC32B ○ ● 16.00 4 32.0 0.2 45.0 32.00 92.00 16.00 R216.34-18030-BC32B ○ ● 18.00 4 32.0 0.2 45.0 32.00 92.00 18.00 R216.34-20030-BC38B ○ ● 20.00 4 38.0 0.2 45.0 38.00 104.00 20.00 R216.35-25030-BC45B ○ ● 25.00 5 45.0 0.2 45.0 45.00 121.00 25.00 ● = First choice ○ = Good choice 148
