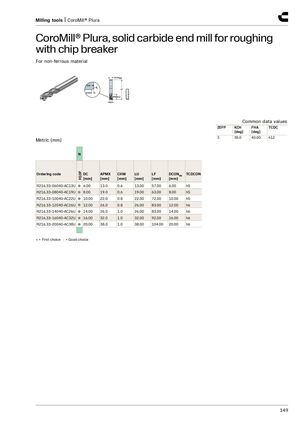

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For non-ferrous material Common data values ZEFP KCH FHA TCDC [deg] [deg] 3 55.0 40.00 h12 Metric (mm) N H10F Ordering code DC APMX CHW LU LF DCONMS TCDCON [mm] [mm] [mm] [mm] [mm] [mm] R216.33-06040-AC13U ● 6.00 13.0 0.6 13.00 57.00 6.00 h5 R216.33-08040-AC19U ● 8.00 19.0 0.6 19.00 63.00 8.00 h5 R216.33-10040-AC22U ● 10.00 22.0 0.8 22.00 72.00 10.00 h5 R216.33-12040-AC26U ● 12.00 26.0 0.8 26.00 83.00 12.00 h6 R216.33-14040-AC26U ● 14.00 26.0 1.0 26.00 83.00 14.00 h6 R216.33-16040-AC32U ● 16.00 32.0 1.0 32.00 92.00 16.00 h6 R216.33-20040-AC38U ● 20.00 38.0 1.0 38.00 104.00 20.00 h6 ● = First choice ○ = Good choice 149
