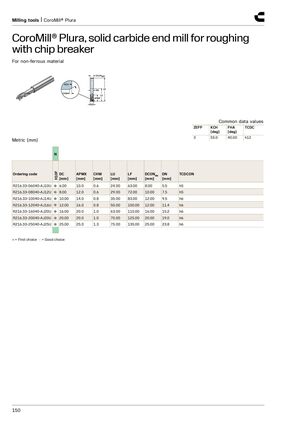

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for roughing with chip breaker​​ For non-ferrous material Common data values ZEFP KCH FHA TCDC [deg] [deg] 3 55.0 40.00 h12 Metric (mm) N H10F Ordering code DC APMX CHW LU LF DCONMS DN TCDCON [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.33-06040-AJ10U ● 6.00 10.0 0.6 24.00 63.00 8.00 5.5 h5 R216.33-08040-AJ12U ● 8.00 12.0 0.6 29.00 72.00 10.00 7.5 h5 R216.33-10040-AJ14U ● 10.00 14.0 0.8 35.00 83.00 12.00 9.5 h6 R216.33-12040-AJ16U ● 12.00 16.0 0.8 50.00 100.00 12.00 11.4 h6 R216.33-16040-AJ20U ● 16.00 20.0 1.0 63.00 115.00 16.00 15.2 h6 R216.33-20040-AJ20U ● 20.00 20.0 1.0 70.00 125.00 20.00 19.0 h6 R216.33-25040-AJ25U ● 25.00 25.0 1.3 75.00 135.00 25.00 23.8 h6 ● = First choice ○ = Good choice 150
