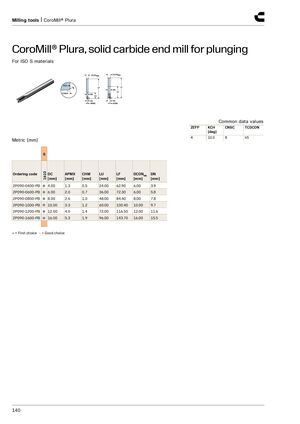

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for plunging​​ For ISO S materials Common data values ZEFP KCH CNSC TCDCON [deg] 4 10.0 8 h5 Metric (mm) S 1610 Ordering code DC APMX CHW LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2P090-0400-PB ● 4.00 1.3 0.5 24.00 62.90 6.00 3.9 2P090-0600-PB ● 6.00 2.0 0.7 36.00 72.30 6.00 5.8 2P090-0800-PB ● 8.00 2.6 1.0 48.00 84.40 8.00 7.8 2P090-1000-PB ● 10.00 3.3 1.2 60.00 100.40 10.00 9.7 2P090-1200-PB ● 12.00 4.0 1.4 72.00 116.50 12.00 11.6 2P090-1600-PB ● 16.00 5.3 1.9 96.00 143.70 16.00 15.5 ● = First choice ○ = Good choice 140
