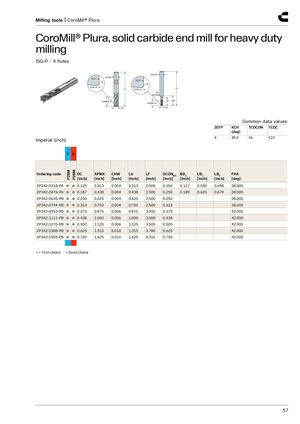

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ ISO-P - 4 flutes DCON DCON KCH KCH CHW LF LF CHW BHTA2 APMX/LU LB1 LB2 APMX/LU DC DC Common data values ZEFP KCH TCDCON TCDC [deg] 4 45.0 h6 h10 Imperial (inch) P K P2BM P2BM Ordering code DC APMX CHW LU LF DCONMS BD 1 _ LB 1 _ LB 2_ FHA [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [deg] 2P342-0318-PA ● ● 0.125 0.313 0.004 0.313 2.500 0.250 0.127 0.590 0.698 38.000 2P342-0476-PA ● ● 0.187 0.438 0.004 0.438 2.500 0.250 0.189 0.625 0.679 38.000 2P342-0635-PB ● ● 0.250 0.625 0.004 0.625 2.500 0.250 38.000 2P342-0794-PB ● ● 0.313 0.750 0.004 0.750 2.500 0.313 38.000 2P342-0953-PB ● ● 0.375 0.875 0.006 0.875 3.000 0.375 42.000 2P342-1111-PB ● ● 0.438 1.000 0.006 1.000 3.500 0.438 42.000 2P342-1270-PB ● ● 0.500 1.125 0.006 1.125 3.500 0.500 42.000 2P342-1588-PB ● ● 0.625 1.315 0.010 1.315 3.780 0.625 42.000 2P342-1905-PB ● ● 0.750 1.625 0.010 1.625 4.315 0.750 42.000 ● = First choice ○ = Good choice 57
