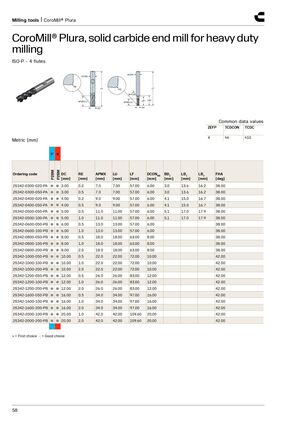

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ ISO-P - 4 flutes DCON DCON RE LF RE LF BHTA2 APMX/LU LB1 LB2 APMX/LU DC DC Common data values ZEFP TCDCON TCDC 4 h6 h10 Metric (mm) P K P2BM P2BM Ordering code DC RE APMX LU LF DCONMS BD 1 _ LB 1 _ LB 2 _ FHA [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] 2S342-0300-020-PA ● ● 3.00 0.2 7.0 7.00 57.00 6.00 3.0 13.6 16.2 38.00 2S342-0300-050-PA ● ● 3.00 0.5 7.0 7.00 57.00 6.00 3.0 13.6 16.2 38.00 2S342-0400-020-PA ● ● 4.00 0.2 9.0 9.00 57.00 6.00 4.1 15.0 16.7 38.00 2S342-0400-050-PA ● ● 4.00 0.5 9.0 9.00 57.00 6.00 4.1 15.0 16.7 38.00 2S342-0500-050-PA ● ● 5.00 0.5 11.0 11.00 57.00 6.00 5.1 17.0 17.9 38.00 2S342-0500-100-PA ● ● 5.00 1.0 11.0 11.00 57.00 6.00 5.1 17.0 17.9 38.00 2S342-0600-050-PB ● ● 6.00 0.5 13.0 13.00 57.00 6.00 38.00 2S342-0600-100-PB ● ● 6.00 1.0 13.0 13.00 57.00 6.00 38.00 2S342-0800-050-PB ● ● 8.00 0.5 18.0 18.00 63.00 8.00 38.00 2S342-0800-100-PB ● ● 8.00 1.0 18.0 18.00 63.00 8.00 38.00 2S342-0800-200-PB ● ● 8.00 2.0 18.0 18.00 63.00 8.00 38.00 2S342-1000-050-PB ● ● 10.00 0.5 22.0 22.00 72.00 10.00 42.00 2S342-1000-100-PB ● ● 10.00 1.0 22.0 22.00 72.00 10.00 42.00 2S342-1000-200-PB ● ● 10.00 2.0 22.0 22.00 72.00 10.00 42.00 2S342-1200-050-PB ● ● 12.00 0.5 26.0 26.00 83.00 12.00 42.00 2S342-1200-100-PB ● ● 12.00 1.0 26.0 26.00 83.00 12.00 42.00 2S342-1200-200-PB ● ● 12.00 2.0 26.0 26.00 83.00 12.00 42.00 2S342-1600-050-PB ● ● 16.00 0.5 34.0 34.00 97.00 16.00 42.00 2S342-1600-100-PB ● ● 16.00 1.0 34.0 34.00 97.00 16.00 42.00 2S342-1600-200-PB ● ● 16.00 2.0 34.0 34.00 97.00 16.00 42.00 2S342-2000-100-PB ● ● 20.00 1.0 42.0 42.00 109.60 20.00 42.00 2S342-2000-200-PB ● ● 20.00 2.0 42.0 42.00 109.60 20.00 42.00 ● = First choice ○ = Good choice 58
