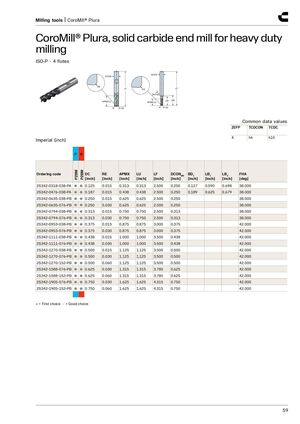

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ ISO-P - 4 flutes DCON DCON RE LF RE LF BHTA2 APMX/LU LB1 LB2 APMX/LU DC DC Common data values ZEFP TCDCON TCDC 4 h6 h10 Imperial (inch) P K P2BM P2BM Ordering code DC RE APMX LU LF DCONMS BD 1 _ LB 1 _ LB 2 _ FHA [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [deg] 2S342-0318-038-PA ● ● 0.125 0.015 0.313 0.313 2.500 0.250 0.127 0.590 0.698 38.000 2S342-0476-038-PA ● ● 0.187 0.015 0.438 0.438 2.500 0.250 0.189 0.625 0.679 38.000 2S342-0635-038-PB ● ● 0.250 0.015 0.625 0.625 2.500 0.250 38.000 2S342-0635-076-PB ● ● 0.250 0.030 0.625 0.625 2.500 0.250 38.000 2S342-0794-038-PB ● ● 0.313 0.015 0.750 0.750 2.500 0.313 38.000 2S342-0794-076-PB ● ● 0.313 0.030 0.750 0.750 2.500 0.313 38.000 2S342-0953-038-PB ● ● 0.375 0.015 0.875 0.875 3.000 0.375 42.000 2S342-0953-076-PB ● ● 0.375 0.030 0.875 0.875 3.000 0.375 42.000 2S342-1111-038-PB ● ● 0.438 0.015 1.000 1.000 3.500 0.438 42.000 2S342-1111-076-PB ● ● 0.438 0.030 1.000 1.000 3.500 0.438 42.000 2S342-1270-038-PB ● ● 0.500 0.015 1.125 1.125 3.500 0.500 42.000 2S342-1270-076-PB ● ● 0.500 0.030 1.125 1.125 3.500 0.500 42.000 2S342-1270-152-PB ● ● 0.500 0.060 1.125 1.125 3.500 0.500 42.000 2S342-1588-076-PB ● ● 0.625 0.030 1.315 1.315 3.780 0.625 42.000 2S342-1588-152-PB ● ● 0.625 0.060 1.315 1.315 3.780 0.625 42.000 2S342-1905-076-PB ● ● 0.750 0.030 1.625 1.625 4.315 0.750 42.000 2S342-1905-152-PB ● ● 0.750 0.060 1.625 1.625 4.315 0.750 42.000 ● = First choice ○ = Good choice 59
