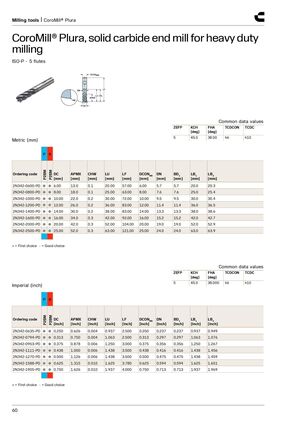

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ ISO-P - 5 flutes Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 5 45.0 38.00 h6 h10 Metric (mm) P K P2BM P2BM Ordering code DC APMX CHW LU LF DCONMS DN BD 1_ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2N342-0600-PD ● ● 6.00 13.0 0.1 20.00 57.00 6.00 5.7 5.7 20.0 20.3 2N342-0800-PD ● ● 8.00 18.0 0.1 25.00 63.00 8.00 7.6 7.6 25.0 25.4 2N342-1000-PD ● ● 10.00 22.0 0.2 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2N342-1200-PD ● ● 12.00 26.0 0.2 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2N342-1400-PD ● ● 14.00 30.0 0.2 38.00 83.00 14.00 13.3 13.3 38.0 38.6 2N342-1600-PD ● ● 16.00 34.0 0.3 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2N342-2000-PD ● ● 20.00 42.0 0.3 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2N342-2500-PD ● ● 25.00 52.0 0.3 63.00 121.00 25.00 24.0 24.0 63.0 63.9 ● = First choice ○ = Good choice Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 5 45.0 38.000 h6 h10 Imperial (inch) P K P2BM P2BM Ordering code DC APMX CHW LU LF DCONMS DN BD 1_ LB 1 _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2N342-0635-PD ● ● 0.250 0.626 0.004 0.937 2.500 0.250 0.237 0.237 0.937 0.949 2N342-0794-PD ● ● 0.313 0.750 0.004 1.063 2.500 0.313 0.297 0.297 1.063 1.076 2N342-0953-PD ● ● 0.375 0.878 0.006 1.250 3.000 0.375 0.356 0.356 1.250 1.267 2N342-1111-PD ● ● 0.438 1.000 0.006 1.438 3.500 0.438 0.416 0.416 1.438 1.456 2N342-1270-PD ● ● 0.500 1.126 0.006 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2N342-1588-PD ● ● 0.625 1.315 0.010 1.625 3.780 0.625 0.594 0.594 1.625 1.651 2N342-1905-PD ● ● 0.750 1.626 0.010 1.937 4.000 0.750 0.713 0.713 1.937 1.969 ● = First choice ○ = Good choice 60
