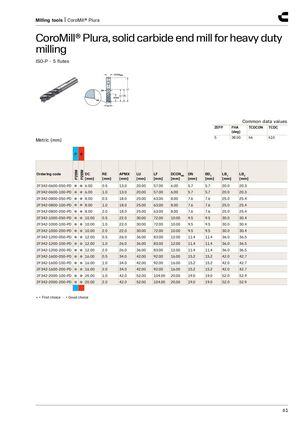

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ ISO-P - 5 flutes Common data values ZEFP FHA TCDCON TCDC [deg] 5 38.00 h6 h10 Metric (mm) P K P2BM P2BM Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2_ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F342-0600-050-PD ● ● 6.00 0.5 13.0 20.00 57.00 6.00 5.7 5.7 20.0 20.3 2F342-0600-100-PD ● ● 6.00 1.0 13.0 20.00 57.00 6.00 5.7 5.7 20.0 20.3 2F342-0800-050-PD ● ● 8.00 0.5 18.0 25.00 63.00 8.00 7.6 7.6 25.0 25.4 2F342-0800-100-PD ● ● 8.00 1.0 18.0 25.00 63.00 8.00 7.6 7.6 25.0 25.4 2F342-0800-200-PD ● ● 8.00 2.0 18.0 25.00 63.00 8.00 7.6 7.6 25.0 25.4 2F342-1000-050-PD ● ● 10.00 0.5 22.0 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2F342-1000-100-PD ● ● 10.00 1.0 22.0 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2F342-1000-200-PD ● ● 10.00 2.0 22.0 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2F342-1200-050-PD ● ● 12.00 0.5 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F342-1200-100-PD ● ● 12.00 1.0 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F342-1200-200-PD ● ● 12.00 2.0 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F342-1600-050-PD ● ● 16.00 0.5 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F342-1600-100-PD ● ● 16.00 1.0 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F342-1600-200-PD ● ● 16.00 2.0 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F342-2000-100-PD ● ● 20.00 1.0 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2F342-2000-200-PD ● ● 20.00 2.0 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 ● = First choice ○ = Good choice 61
