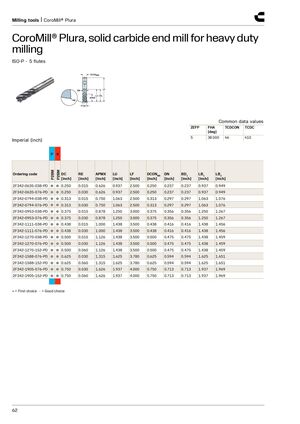

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ ISO-P - 5 flutes Common data values ZEFP FHA TCDCON TCDC [deg] 5 38.000 h6 h10 Imperial (inch) P K P2BM P2BM Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2F342-0635-038-PD ● ● 0.250 0.015 0.626 0.937 2.500 0.250 0.237 0.237 0.937 0.949 2F342-0635-076-PD ● ● 0.250 0.030 0.626 0.937 2.500 0.250 0.237 0.237 0.937 0.949 2F342-0794-038-PD ● ● 0.313 0.015 0.750 1.063 2.500 0.313 0.297 0.297 1.063 1.076 2F342-0794-076-PD ● ● 0.313 0.030 0.750 1.063 2.500 0.313 0.297 0.297 1.063 1.076 2F342-0953-038-PD ● ● 0.375 0.015 0.878 1.250 3.000 0.375 0.356 0.356 1.250 1.267 2F342-0953-076-PD ● ● 0.375 0.030 0.878 1.250 3.000 0.375 0.356 0.356 1.250 1.267 2F342-1111-038-PD ● ● 0.438 0.015 1.000 1.438 3.500 0.438 0.416 0.416 1.438 1.456 2F342-1111-076-PD ● ● 0.438 0.030 1.000 1.438 3.500 0.438 0.416 0.416 1.438 1.456 2F342-1270-038-PD ● ● 0.500 0.015 1.126 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F342-1270-076-PD ● ● 0.500 0.030 1.126 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F342-1270-152-PD ● ● 0.500 0.060 1.126 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F342-1588-076-PD ● ● 0.625 0.030 1.315 1.625 3.780 0.625 0.594 0.594 1.625 1.651 2F342-1588-152-PD ● ● 0.625 0.060 1.315 1.625 3.780 0.625 0.594 0.594 1.625 1.651 2F342-1905-076-PD ● ● 0.750 0.030 1.626 1.937 4.000 0.750 0.713 0.713 1.937 1.969 2F342-1905-152-PD ● ● 0.750 0.060 1.626 1.937 4.000 0.750 0.713 0.713 1.937 1.969 ● = First choice ○ = Good choice 62
