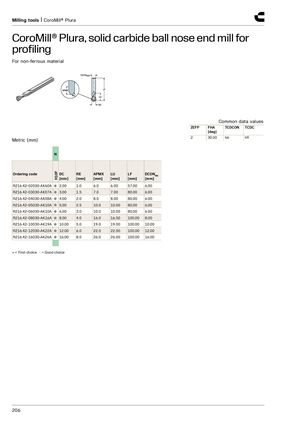

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h9 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] R216.42-02030-AK60A ● 2.00 1.0 6.0 6.00 57.00 6.00 R216.42-03030-AK07A ● 3.00 1.5 7.0 7.00 80.00 6.00 R216.42-04030-AK08A ● 4.00 2.0 8.0 8.00 80.00 6.00 R216.42-05030-AK10A ● 5.00 2.5 10.0 10.00 80.00 6.00 R216.42-06030-AK10A ● 6.00 3.0 10.0 10.00 80.00 6.00 R216.42-08030-AK16A ● 8.00 4.0 16.0 16.00 100.00 8.00 R216.42-10030-AK19A ● 10.00 5.0 19.0 19.00 100.00 10.00 R216.42-12030-AK22A ● 12.00 6.0 22.0 22.00 100.00 12.00 R216.42-16030-AK26A ● 16.00 8.0 26.0 26.00 100.00 16.00 ● = First choice ○ = Good choice 206
