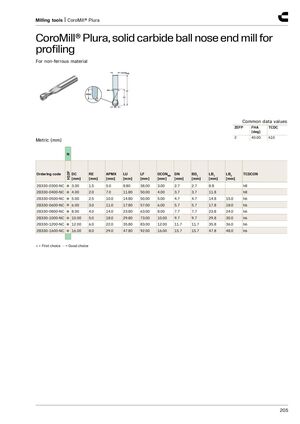

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For non-ferrous material Common data values ZEFP FHA TCDC [deg] 2 40.00 h10 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ TCDCON [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2B330-0300-NC ● 3.00 1.5 5.0 8.80 38.00 3.00 2.7 2.7 8.8 h8 2B330-0400-NC ● 4.00 2.0 7.0 11.80 50.00 4.00 3.7 3.7 11.8 h8 2B330-0500-NC ● 5.00 2.5 10.0 14.80 50.00 5.00 4.7 4.7 14.8 15.0 h6 2B330-0600-NC ● 6.00 3.0 11.0 17.80 57.00 6.00 5.7 5.7 17.8 18.0 h6 2B330-0800-NC ● 8.00 4.0 14.0 23.80 63.00 8.00 7.7 7.7 23.8 24.0 h6 2B330-1000-NC ● 10.00 5.0 18.0 29.80 73.00 10.00 9.7 9.7 29.8 30.0 h6 2B330-1200-NC ● 12.00 6.0 22.0 35.80 83.00 12.00 11.7 11.7 35.8 36.0 h6 2B330-1600-NC ● 16.00 8.0 29.0 47.80 92.00 16.00 15.7 15.7 47.8 48.0 h6 ● = First choice ○ = Good choice 205
