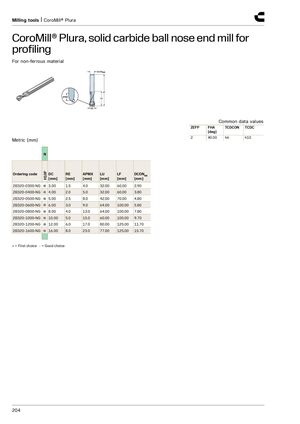

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 40.00 h6 h10 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2B320-0300-NG ● 3.00 1.5 4.0 32.00 60.00 2.90 2B320-0400-NG ● 4.00 2.0 5.0 32.00 60.00 3.80 2B320-0500-NG ● 5.00 2.5 8.0 42.00 70.00 4.80 2B320-0600-NG ● 6.00 3.0 9.0 64.00 100.00 5.80 2B320-0800-NG ● 8.00 4.0 13.0 64.00 100.00 7.80 2B320-1000-NG ● 10.00 5.0 15.0 60.00 100.00 9.70 2B320-1200-NG ● 12.00 6.0 17.0 80.00 125.00 11.70 2B320-1600-NG ● 16.00 8.0 23.0 77.00 125.00 15.70 ● = First choice ○ = Good choice 204
