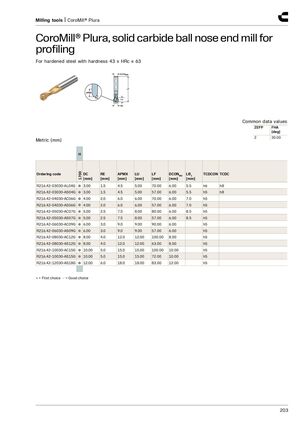

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values ZEFP FHA [deg] 2 30.00 Metric (mm) H 1700 Ordering code DC RE APMX LU LF DCONMS LB 1 _ TCDCON TCDC [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.42-03030-AL04G ● 3.00 1.5 4.5 5.00 70.00 6.00 5.5 h6 h8 R216.42-03030-AS04G ● 3.00 1.5 4.5 5.00 57.00 6.00 5.5 h5 h8 R216.42-04030-AC06G ● 4.00 2.0 6.0 6.00 70.00 6.00 7.0 h5 R216.42-04030-AS06G ● 4.00 2.0 6.0 6.00 57.00 6.00 7.0 h5 R216.42-05030-AC07G ● 5.00 2.5 7.5 8.00 80.00 6.00 8.5 h5 R216.42-05030-AS07G ● 5.00 2.5 7.5 8.00 57.00 6.00 8.5 h5 R216.42-06030-AC09G ● 6.00 3.0 9.0 9.00 90.00 6.00 h5 R216.42-06030-AS09G ● 6.00 3.0 9.0 9.00 57.00 6.00 h5 R216.42-08030-AC12G ● 8.00 4.0 12.0 12.00 100.00 8.00 h5 R216.42-08030-AS12G ● 8.00 4.0 12.0 12.00 63.00 8.00 h5 R216.42-10030-AC15G ● 10.00 5.0 15.0 15.00 100.00 10.00 h5 R216.42-10030-AS15G ● 10.00 5.0 15.0 15.00 72.00 10.00 h5 R216.42-12030-AS18G ● 12.00 6.0 18.0 18.00 83.00 12.00 h5 ● = First choice ○ = Good choice 203
