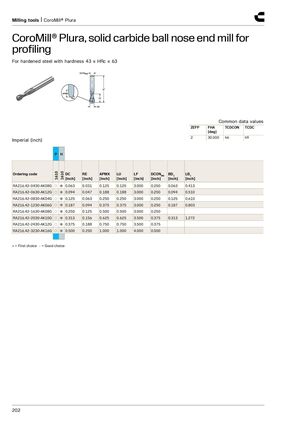

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.000 h6 h9 Imperial (inch) P H 1610 1610 Ordering code DC RE APMX LU LF DCONMS BD 1 _ LB 1 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] RA216.42-0430-AK08G ○ ● 0.063 0.031 0.125 0.125 3.000 0.250 0.063 0.413 RA216.42-0630-AK12G ○ ● 0.094 0.047 0.188 0.188 3.000 0.250 0.094 0.510 RA216.42-0830-AK04G ○ ● 0.125 0.063 0.250 0.250 3.000 0.250 0.125 0.610 RA216.42-1230-AK06G ○ ● 0.187 0.094 0.375 0.375 3.000 0.250 0.187 0.803 RA216.42-1630-AK08G ○ ● 0.250 0.125 0.500 0.500 3.000 0.250 RA216.42-2030-AK10G ○ ● 0.313 0.156 0.625 0.625 3.500 0.375 0.313 1.272 RA216.42-2430-AK12G ○ ● 0.375 0.188 0.750 0.750 3.500 0.375 RA216.42-3230-AK16G ○ ● 0.500 0.250 1.000 1.000 4.000 0.500 ● = First choice ○ = Good choice 202
