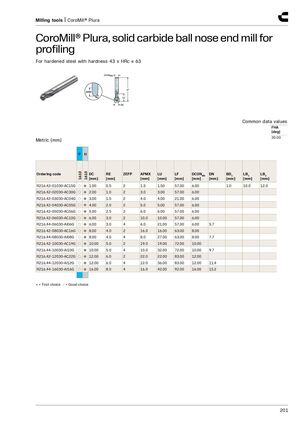

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values FHA [deg] 30.00 Metric (mm) P H 1610 1610 Ordering code DC RE ZEFP APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.42-01030-AC15G ○ ● 1.00 0.5 2 1.5 1.50 57.00 6.00 1.0 10.0 12.0 R216.42-02030-AC30G ○ ● 2.00 1.0 2 3.0 3.00 57.00 6.00 R216.42-03030-AC04G ○ ● 3.00 1.5 2 4.0 4.00 21.00 6.00 R216.42-04030-AC05G ○ ● 4.00 2.0 2 5.0 5.00 57.00 6.00 R216.42-05030-AC06G ○ ● 5.00 2.5 2 6.0 6.00 57.00 6.00 R216.42-06030-AC10G ○ ● 6.00 3.0 2 10.0 10.00 57.00 6.00 R216.44-06030-AI06G ○ ● 6.00 3.0 4 6.0 21.00 57.00 6.00 5.7 R216.42-08030-AC16G ○ ● 8.00 4.0 2 16.0 16.00 63.00 8.00 R216.44-08030-AI08G ○ ● 8.00 4.0 4 8.0 27.00 63.00 8.00 7.7 R216.42-10030-AC19G ○ ● 10.00 5.0 2 19.0 19.00 72.00 10.00 R216.44-10030-AI10G ○ ● 10.00 5.0 4 10.0 32.00 72.00 10.00 9.7 R216.42-12030-AC22G ○ ● 12.00 6.0 2 22.0 22.00 83.00 12.00 R216.44-12030-AI12G ○ ● 12.00 6.0 4 12.0 36.00 83.00 12.00 11.4 R216.44-16030-AI16G ○ ● 16.00 8.0 4 16.0 42.00 92.00 16.00 15.2 ● = First choice ○ = Good choice 201
