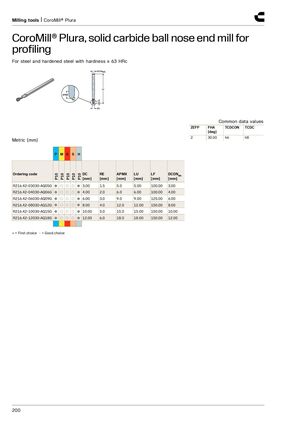

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For steel and hardened steel with hardness ≤ 63 HRc Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h8 Metric (mm) P M K S H Ordering code DC RE APMX LU LF DCONMS P10 P10 P10 P10 P10 [mm] [mm] [mm] [mm] [mm] [mm] R216.42-03030-AQ05G ● ○ ○ ○ ● 3.00 1.5 5.0 5.00 100.00 3.00 R216.42-04030-AQ06G ● ○ ○ ○ ● 4.00 2.0 6.0 6.00 100.00 4.00 R216.42-06030-AQ09G ● ○ ○ ○ ● 6.00 3.0 9.0 9.00 125.00 6.00 R216.42-08030-AQ12G ● ○ ○ ○ ● 8.00 4.0 12.0 12.00 150.00 8.00 R216.42-10030-AQ15G ● ○ ○ ○ ● 10.00 5.0 15.0 15.00 150.00 10.00 R216.42-12030-AQ18G ● ○ ○ ○ ● 12.00 6.0 18.0 18.00 150.00 12.00 ● = First choice ○ = Good choice 200
