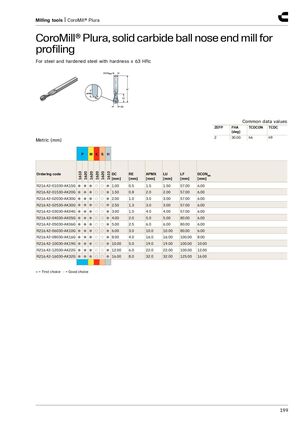

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for profiling​​ For steel and hardened steel with hardness ≤ 63 HRc Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h9 Metric (mm) P M K S H 1610 1620 1620 1620 1620 1610 Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] R216.42-01030-AK15G ● ● ● ○ ○ ● 1.00 0.5 1.5 1.50 57.00 6.00 R216.42-01530-AK20G ● ● ● ○ ○ ● 1.50 0.8 2.0 2.00 57.00 6.00 R216.42-02030-AK30G ● ● ● ○ ○ ● 2.00 1.0 3.0 3.00 57.00 6.00 R216.42-02530-AK30G ● ● ● ○ ○ ● 2.50 1.3 3.0 3.00 57.00 6.00 R216.42-03030-AK04G ● ● ● ○ ○ ● 3.00 1.5 4.0 4.00 57.00 6.00 R216.42-04030-AK05G ● ● ● ○ ○ ● 4.00 2.0 5.0 5.00 80.00 6.00 R216.42-05030-AK06G ● ● ● ○ ○ ● 5.00 2.5 6.0 6.00 80.00 6.00 R216.42-06030-AK10G ● ● ● ○ ○ ● 6.00 3.0 10.0 10.00 80.00 6.00 R216.42-08030-AK16G ● ● ● ○ ○ ● 8.00 4.0 16.0 16.00 100.00 8.00 R216.42-10030-AK19G ● ● ● ○ ○ ● 10.00 5.0 19.0 19.00 100.00 10.00 R216.42-12030-AK22G ● ● ● ○ ○ ● 12.00 6.0 22.0 22.00 100.00 12.00 R216.42-16030-AK32G ● ● ● ○ ○ ● 16.00 8.0 32.0 32.00 125.00 16.00 ● = First choice ○ = Good choice 199
