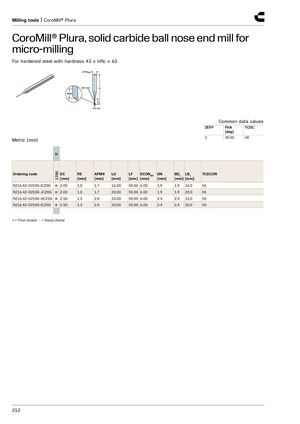

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for micro-milling​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values ZEFP FHA TCDC [deg] 2 30.00 h8 Metric (mm) H 1700 Ordering code DC RE APMX LU LF DCONMS DN BD 1 LB 1 _ _ TCDCON [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.42-02030-IC20G ● 2.00 1.0 1.7 16.00 50.00 6.00 1.9 1.9 16.0 h5 R216.42-02030-JC20G ● 2.00 1.0 1.7 20.00 55.00 6.00 1.9 1.9 20.0 h5 R216.42-02530-HC25G ● 2.50 1.3 2.0 15.00 50.00 6.00 2.4 2.4 15.0 h5 R216.42-02530-IC25G ● 2.50 1.3 2.0 20.00 55.00 6.00 2.4 2.4 20.0 h5 ● = First choice ○ = Good choice 212
