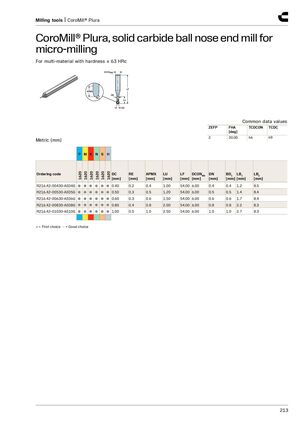

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide ball nose end mill for micro-milling​​ For multi-material with hardness ≤ 63 HRc Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h9 Metric (mm) P M K N S H 1620 1620 1620 1620 1620 1620 Ordering code DC RE APMX LU LF DCONMS DN BD 1 LB 1 _ _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.42-00430-AE04G ● ● ● ● ● ● 0.40 0.2 0.4 1.00 54.00 6.00 0.4 0.4 1.2 8.5 R216.42-00530-AE05G ● ● ● ● ● ● 0.50 0.3 0.5 1.20 54.00 6.00 0.5 0.5 1.4 8.4 R216.42-00630-AE06G ● ● ● ● ● ● 0.60 0.3 0.6 1.50 54.00 6.00 0.6 0.6 1.7 8.4 R216.42-00830-AE08G ● ● ● ● ● ● 0.80 0.4 0.8 2.00 54.00 6.00 0.8 0.8 2.2 8.3 R216.42-01030-AE10G ● ● ● ● ● ● 1.00 0.5 1.0 2.50 54.00 6.00 1.0 1.0 2.7 8.3 ● = First choice ○ = Good choice 213
