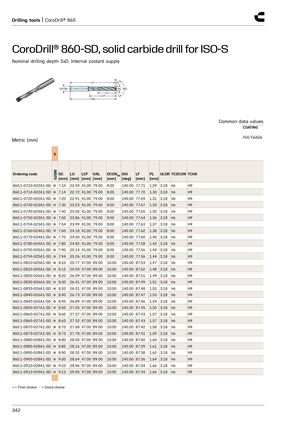

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 3xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0710-022A1-SD ● 7.10 22.59 41.00 79.00 8.00 140.00 77.71 1.29 3.18 h6 H9 860.1-0714-022A1-SD ● 7.14 22.72 41.00 79.00 8.00 140.00 77.70 1.30 3.18 h6 H9 860.1-0720-022A1-SD ● 7.20 22.91 41.00 79.00 8.00 140.00 77.69 1.31 3.18 h6 H9 860.1-0730-023A1-SD ● 7.30 23.23 41.00 79.00 8.00 140.00 77.67 1.33 3.18 h6 H9 860.1-0740-023A1-SD ● 7.40 23.55 41.00 79.00 8.00 140.00 77.65 1.35 3.18 h6 H9 860.1-0750-023A1-SD ● 7.50 23.86 41.00 79.00 8.00 140.00 77.64 1.36 3.18 h6 H9 860.1-0754-023A1-SD ● 7.54 23.99 41.00 79.00 8.00 140.00 77.63 1.37 3.18 h6 H9 860.1-0760-024A1-SD ● 7.60 24.18 41.00 79.00 8.00 140.00 77.62 1.38 3.18 h6 H9 860.1-0770-024A1-SD ● 7.70 24.50 41.00 79.00 8.00 140.00 77.60 1.40 3.18 h6 H9 860.1-0780-024A1-SD ● 7.80 24.82 41.00 79.00 8.00 140.00 77.58 1.42 3.18 h6 H9 860.1-0790-025A1-SD ● 7.90 25.14 41.00 79.00 8.00 140.00 77.56 1.44 3.18 h6 H9 860.1-0794-025A1-SD ● 7.94 25.26 41.00 79.00 8.00 140.00 77.56 1.44 3.18 h6 H9 860.1-0810-025A1-SD ● 8.10 25.77 47.00 89.00 10.00 140.00 87.53 1.47 3.18 h6 H9 860.1-0815-025A1-SD ● 8.15 25.93 47.00 89.00 10.00 140.00 87.52 1.48 3.18 h6 H9 860.1-0820-026A1-SD ● 8.20 26.09 47.00 89.00 10.00 140.00 87.51 1.49 3.18 h6 H9 860.1-0830-026A1-SD ● 8.30 26.41 47.00 89.00 10.00 140.00 87.49 1.51 3.18 h6 H9 860.1-0833-026A1-SD ● 8.33 26.51 47.00 89.00 10.00 140.00 87.48 1.52 3.18 h6 H9 860.1-0840-026A1-SD ● 8.40 26.73 47.00 89.00 10.00 140.00 87.47 1.53 3.18 h6 H9 860.1-0845-026A1-SD ● 8.45 26.89 47.00 89.00 10.00 140.00 87.46 1.54 3.18 h6 H9 860.1-0850-027A1-SD ● 8.50 27.05 47.00 89.00 10.00 140.00 87.45 1.55 3.18 h6 H9 860.1-0860-027A1-SD ● 8.60 27.37 47.00 89.00 10.00 140.00 87.43 1.57 3.18 h6 H9 860.1-0865-027A1-SD ● 8.65 27.52 47.00 89.00 10.00 140.00 87.43 1.57 3.18 h6 H9 860.1-0870-027A1-SD ● 8.70 27.68 47.00 89.00 10.00 140.00 87.42 1.58 3.18 h6 H9 860.1-0873-027A1-SD ● 8.73 27.78 47.00 89.00 10.00 140.00 87.41 1.59 3.18 h6 H9 860.1-0880-028A1-SD ● 8.80 28.00 47.00 89.00 10.00 140.00 87.40 1.60 3.18 h6 H9 860.1-0885-028A1-SD ● 8.85 28.16 47.00 89.00 10.00 140.00 87.39 1.61 3.18 h6 H9 860.1-0890-028A1-SD ● 8.90 28.32 47.00 89.00 10.00 140.00 87.38 1.62 3.18 h6 H9 860.1-0900-028A1-SD ● 9.00 28.64 47.00 89.00 10.00 140.00 87.36 1.64 3.18 h6 H9 860.1-0910-028A1-SD ● 9.10 28.96 47.00 89.00 10.00 140.00 87.34 1.66 3.18 h6 H9 860.1-0913-029A1-SD ● 9.13 29.05 47.00 89.00 10.00 140.00 87.34 1.66 3.18 h6 H9 ● = First choice ○ = Good choice 342
