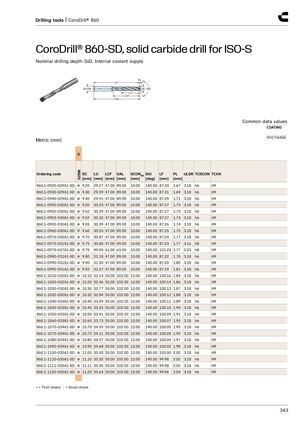

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 3xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0920-029A1-SD ● 9.20 29.27 47.00 89.00 10.00 140.00 87.33 1.67 3.18 h6 H9 860.1-0930-029A1-SD ● 9.30 29.59 47.00 89.00 10.00 140.00 87.31 1.69 3.18 h6 H9 860.1-0940-029A1-SD ● 9.40 29.91 47.00 89.00 10.00 140.00 87.29 1.71 3.18 h6 H9 860.1-0950-030A1-SD ● 9.50 30.23 47.00 89.00 10.00 140.00 87.27 1.73 3.18 h6 H9 860.1-0952-030A1-SD ● 9.52 30.29 47.00 89.00 10.00 140.00 87.27 1.73 3.18 h6 H9 860.1-0953-030A1-SD ● 9.52 30.32 47.00 89.00 10.00 140.00 87.27 1.73 3.18 h6 H9 860.1-0955-030A1-SD ● 9.55 30.39 47.00 89.00 10.00 140.00 87.26 1.74 3.18 h6 H9 860.1-0960-030A1-SD ● 9.60 30.55 47.00 89.00 10.00 140.00 87.25 1.75 3.18 h6 H9 860.1-0970-030A1-SD ● 9.70 30.87 47.00 89.00 10.00 140.00 87.24 1.77 3.18 h6 H9 860.1-0975-031A1-SD ● 9.75 30.80 47.00 49.00 10.00 140.00 87.23 1.77 3.16 h8 H9 860.1-0975-047A1-SD ● 9.75 49.00 61.00 63.00 10.00 140.00 101.23 1.77 5.03 h8 H9 860.1-0980-031A1-SD ● 9.80 31.18 47.00 89.00 10.00 140.00 87.22 1.78 3.18 h6 H9 860.1-0990-031A1-SD ● 9.90 31.50 47.00 89.00 10.00 140.00 87.20 1.80 3.18 h6 H9 860.1-0992-031A1-SD ● 9.92 31.57 47.00 89.00 10.00 140.00 87.19 1.81 3.18 h6 H9 860.1-1010-032A1-SD ● 10.10 32.14 55.00 102.00 12.00 140.00 100.16 1.84 3.18 h6 H9 860.1-1020-032A1-SD ● 10.20 32.46 55.00 102.00 12.00 140.00 100.14 1.86 3.18 h6 H9 860.1-1030-032A1-SD ● 10.30 32.77 55.00 102.00 12.00 140.00 100.13 1.87 3.18 h6 H9 860.1-1032-032A1-SD ● 10.32 32.84 55.00 102.00 12.00 140.00 100.12 1.88 3.18 h6 H9 860.1-1040-033A1-SD ● 10.40 33.09 55.00 102.00 12.00 140.00 100.11 1.89 3.18 h6 H9 860.1-1045-033A1-SD ● 10.45 33.25 55.00 102.00 12.00 140.00 100.10 1.90 3.18 h6 H9 860.1-1050-033A1-SD ● 10.50 33.41 55.00 102.00 12.00 140.00 100.09 1.91 3.18 h6 H9 860.1-1060-033A1-SD ● 10.60 33.73 55.00 102.00 12.00 140.00 100.07 1.93 3.18 h6 H9 860.1-1070-034A1-SD ● 10.70 34.05 55.00 102.00 12.00 140.00 100.05 1.95 3.18 h6 H9 860.1-1072-034A1-SD ● 10.72 34.11 55.00 102.00 12.00 140.00 100.05 1.95 3.18 h6 H9 860.1-1080-034A1-SD ● 10.80 34.37 55.00 102.00 12.00 140.00 100.04 1.97 3.18 h6 H9 860.1-1090-034A1-SD ● 10.90 34.68 55.00 102.00 12.00 140.00 100.02 1.98 3.18 h6 H9 860.1-1100-035A1-SD ● 11.00 35.00 55.00 102.00 12.00 140.00 100.00 2.00 3.18 h6 H9 860.1-1110-035A1-SD ● 11.10 35.32 55.00 102.00 12.00 140.00 99.98 2.02 3.18 h6 H9 860.1-1111-035A1-SD ● 11.11 35.35 55.00 102.00 12.00 140.00 99.98 2.02 3.18 h6 H9 860.1-1120-035A1-SD ● 11.20 35.64 55.00 102.00 12.00 140.00 99.96 2.04 3.18 h6 H9 ● = First choice ○ = Good choice 343
