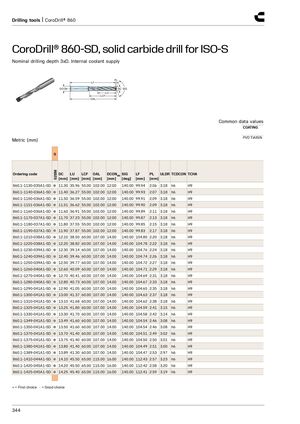

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 3xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1130-035A1-SD ● 11.30 35.96 55.00 102.00 12.00 140.00 99.94 2.06 3.18 h6 H9 860.1-1140-036A1-SD ● 11.40 36.27 55.00 102.00 12.00 140.00 99.93 2.07 3.18 h6 H9 860.1-1150-036A1-SD ● 11.50 36.59 55.00 102.00 12.00 140.00 99.91 2.09 3.18 h6 H9 860.1-1151-036A1-SD ● 11.51 36.62 55.00 102.00 12.00 140.00 99.90 2.09 3.18 h6 H9 860.1-1160-036A1-SD ● 11.60 36.91 55.00 102.00 12.00 140.00 99.89 2.11 3.18 h6 H9 860.1-1170-037A1-SD ● 11.70 37.23 55.00 102.00 12.00 140.00 99.87 2.13 3.18 h6 H9 860.1-1180-037A1-SD ● 11.80 37.55 55.00 102.00 12.00 140.00 99.85 2.15 3.18 h6 H9 860.1-1190-037A1-SD ● 11.90 37.87 55.00 102.00 12.00 140.00 99.83 2.17 3.18 h6 H9 860.1-1210-038A1-SD ● 12.10 38.50 60.00 107.00 14.00 140.00 104.80 2.20 3.18 h6 H9 860.1-1220-038A1-SD ● 12.20 38.82 60.00 107.00 14.00 140.00 104.78 2.22 3.18 h6 H9 860.1-1230-039A1-SD ● 12.30 39.14 60.00 107.00 14.00 140.00 104.76 2.24 3.18 h6 H9 860.1-1240-039A1-SD ● 12.40 39.46 60.00 107.00 14.00 140.00 104.74 2.26 3.18 h6 H9 860.1-1250-039A1-SD ● 12.50 39.77 60.00 107.00 14.00 140.00 104.72 2.27 3.18 h6 H9 860.1-1260-040A1-SD ● 12.60 40.09 60.00 107.00 14.00 140.00 104.71 2.29 3.18 h6 H9 860.1-1270-040A1-SD ● 12.70 40.41 60.00 107.00 14.00 140.00 104.69 2.31 3.18 h6 H9 860.1-1280-040A1-SD ● 12.80 40.73 60.00 107.00 14.00 140.00 104.67 2.33 3.18 h6 H9 860.1-1290-041A1-SD ● 12.90 41.05 60.00 107.00 14.00 140.00 104.65 2.35 3.18 h6 H9 860.1-1300-041A1-SD ● 13.00 41.37 60.00 107.00 14.00 140.00 104.63 2.37 3.18 h6 H9 860.1-1310-041A1-SD ● 13.10 41.68 60.00 107.00 14.00 140.00 104.62 2.38 3.18 h6 H9 860.1-1325-041A1-SD ● 13.25 41.80 60.00 107.00 14.00 140.00 104.59 2.41 3.15 h6 H9 860.1-1330-041A1-SD ● 13.30 41.70 60.00 107.00 14.00 140.00 104.58 2.42 3.14 h6 H9 860.1-1349-041A1-SD ● 13.49 41.60 60.00 107.00 14.00 140.00 104.54 2.46 3.08 h6 H9 860.1-1350-041A1-SD ● 13.50 41.60 60.00 107.00 14.00 140.00 104.54 2.46 3.08 h6 H9 860.1-1370-041A1-SD ● 13.70 41.40 60.00 107.00 14.00 140.00 104.51 2.49 3.02 h6 H9 860.1-1375-041A1-SD ● 13.75 41.40 60.00 107.00 14.00 140.00 104.50 2.50 3.01 h6 H9 860.1-1380-041A1-SD ● 13.80 41.40 60.00 107.00 14.00 140.00 104.49 2.51 3.00 h6 H9 860.1-1389-041A1-SD ● 13.89 41.30 60.00 107.00 14.00 140.00 104.47 2.53 2.97 h6 H9 860.1-1410-044A1-SD ● 14.10 45.50 65.00 115.00 16.00 140.00 112.43 2.57 3.23 h6 H9 860.1-1420-045A1-SD ● 14.20 45.50 65.00 115.00 16.00 140.00 112.42 2.58 3.20 h6 H9 860.1-1425-045A1-SD ● 14.25 45.40 65.00 115.00 16.00 140.00 112.41 2.59 3.19 h6 H9 ● = First choice ○ = Good choice 344
