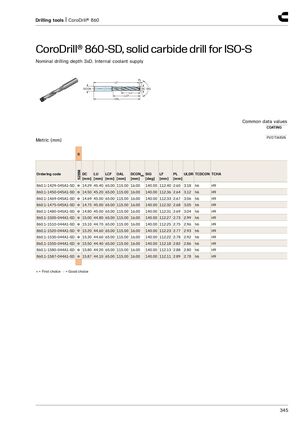

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 3xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-1429-045A1-SD ● 14.29 45.40 65.00 115.00 16.00 140.00 112.40 2.60 3.18 h6 H9 860.1-1450-045A1-SD ● 14.50 45.20 65.00 115.00 16.00 140.00 112.36 2.64 3.12 h6 H9 860.1-1469-045A1-SD ● 14.69 45.00 65.00 115.00 16.00 140.00 112.33 2.67 3.06 h6 H9 860.1-1475-045A1-SD ● 14.75 45.00 65.00 115.00 16.00 140.00 112.32 2.68 3.05 h6 H9 860.1-1480-045A1-SD ● 14.80 45.00 65.00 115.00 16.00 140.00 112.31 2.69 3.04 h6 H9 860.1-1500-044A1-SD ● 15.00 44.80 65.00 115.00 16.00 140.00 112.27 2.73 2.99 h6 H9 860.1-1510-044A1-SD ● 15.10 44.70 65.00 115.00 16.00 140.00 112.25 2.75 2.96 h6 H9 860.1-1520-044A1-SD ● 15.20 44.60 65.00 115.00 16.00 140.00 112.23 2.77 2.93 h6 H9 860.1-1530-044A1-SD ● 15.30 44.60 65.00 115.00 16.00 140.00 112.22 2.78 2.92 h6 H9 860.1-1550-044A1-SD ● 15.50 44.40 65.00 115.00 16.00 140.00 112.18 2.82 2.86 h6 H9 860.1-1580-044A1-SD ● 15.80 44.20 65.00 115.00 16.00 140.00 112.13 2.88 2.80 h6 H9 860.1-1587-044A1-SD ● 15.87 44.10 65.00 115.00 16.00 140.00 112.11 2.89 2.78 h6 H9 ● = First choice ○ = Good choice 345
