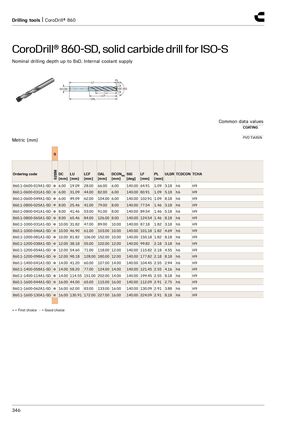

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth up to 8xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0600-019A1-SD ● 6.00 19.09 28.00 66.00 6.00 140.00 64.91 1.09 3.18 h6 H9 860.1-0600-031A1-SD ● 6.00 31.09 44.00 82.00 6.00 140.00 80.91 1.09 5.18 h6 H9 860.1-0600-049A1-SD ● 6.00 49.09 62.00 104.00 6.00 140.00 102.91 1.09 8.18 h6 H9 860.1-0800-025A1-SD ● 8.00 25.46 41.00 79.00 8.00 140.00 77.54 1.46 3.18 h6 H9 860.1-0800-041A1-SD ● 8.00 41.46 53.00 91.00 8.00 140.00 89.54 1.46 5.18 h6 H9 860.1-0800-065A1-SD ● 8.00 65.46 84.00 126.00 8.00 140.00 124.54 1.46 8.18 h6 H9 860.1-1000-031A1-SD ● 10.00 31.82 47.00 89.00 10.00 140.00 87.18 1.82 3.18 h6 H9 860.1-1000-046A1-SD ● 10.00 46.90 61.00 103.00 10.00 140.00 101.18 1.82 4.69 h6 H9 860.1-1000-081A1-SD ● 10.00 81.82 106.00 152.00 10.00 140.00 150.18 1.82 8.18 h6 H9 860.1-1200-038A1-SD ● 12.00 38.18 55.00 102.00 12.00 140.00 99.82 2.18 3.18 h6 H9 860.1-1200-054A1-SD ● 12.00 54.60 71.00 118.00 12.00 140.00 115.82 2.18 4.55 h6 H9 860.1-1200-098A1-SD ● 12.00 98.18 128.00 180.00 12.00 140.00 177.82 2.18 8.18 h6 H9 860.1-1400-041A1-SD ● 14.00 41.20 60.00 107.00 14.00 140.00 104.45 2.55 2.94 h6 H9 860.1-1400-058A1-SD ● 14.00 58.20 77.00 124.00 14.00 140.00 121.45 2.55 4.16 h6 H9 860.1-1400-114A1-SD ● 14.00 114.55 151.00 202.00 14.00 140.00 199.45 2.55 8.18 h6 H9 860.1-1600-044A1-SD ● 16.00 44.00 65.00 115.00 16.00 140.00 112.09 2.91 2.75 h6 H9 860.1-1600-062A1-SD ● 16.00 62.00 83.00 133.00 16.00 140.00 130.09 2.91 3.88 h6 H9 860.1-1600-130A1-SD ● 16.00 130.91 172.00 227.00 16.00 140.00 224.09 2.91 8.18 h6 H9 ● = First choice ○ = Good choice 346
