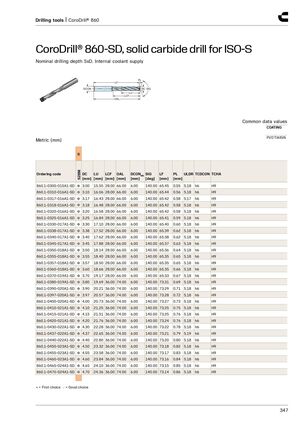

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 5xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0300-015A1-SD ● 3.00 15.55 28.00 66.00 6.00 140.00 65.45 0.55 5.18 h6 H9 860.1-0310-016A1-SD ● 3.10 16.06 28.00 66.00 6.00 140.00 65.44 0.56 5.18 h6 H9 860.1-0317-016A1-SD ● 3.17 16.43 28.00 66.00 6.00 140.00 65.42 0.58 5.17 h6 H9 860.1-0318-016A1-SD ● 3.18 16.48 28.00 66.00 6.00 140.00 65.42 0.58 5.18 h6 H9 860.1-0320-016A1-SD ● 3.20 16.58 28.00 66.00 6.00 140.00 65.42 0.58 5.18 h6 H9 860.1-0325-016A1-SD ● 3.25 16.84 28.00 66.00 6.00 140.00 65.41 0.59 5.18 h6 H9 860.1-0330-017A1-SD ● 3.30 17.10 28.00 66.00 6.00 140.00 65.40 0.60 5.18 h6 H9 860.1-0338-017A1-SD ● 3.38 17.52 28.00 66.00 6.00 140.00 65.39 0.62 5.18 h6 H9 860.1-0340-017A1-SD ● 3.40 17.62 28.00 66.00 6.00 140.00 65.38 0.62 5.18 h6 H9 860.1-0345-017A1-SD ● 3.45 17.88 28.00 66.00 6.00 140.00 65.37 0.63 5.18 h6 H9 860.1-0350-018A1-SD ● 3.50 18.14 28.00 66.00 6.00 140.00 65.36 0.64 5.18 h6 H9 860.1-0355-018A1-SD ● 3.55 18.40 28.00 66.00 6.00 140.00 65.35 0.65 5.18 h6 H9 860.1-0357-018A1-SD ● 3.57 18.50 28.00 66.00 6.00 140.00 65.35 0.65 5.18 h6 H9 860.1-0360-018A1-SD ● 3.60 18.66 28.00 66.00 6.00 140.00 65.35 0.66 5.18 h6 H9 860.1-0370-019A1-SD ● 3.70 19.17 28.00 66.00 6.00 140.00 65.33 0.67 5.18 h6 H9 860.1-0380-019A1-SD ● 3.80 19.69 36.00 74.00 6.00 140.00 73.31 0.69 5.18 h6 H9 860.1-0390-020A1-SD ● 3.90 20.21 36.00 74.00 6.00 140.00 73.29 0.71 5.18 h6 H9 860.1-0397-020A1-SD ● 3.97 20.57 36.00 74.00 6.00 140.00 73.28 0.72 5.18 h6 H9 860.1-0400-020A1-SD ● 4.00 20.73 36.00 74.00 6.00 140.00 73.27 0.73 5.18 h6 H9 860.1-0410-021A1-SD ● 4.10 21.25 36.00 74.00 6.00 140.00 73.25 0.75 5.18 h6 H9 860.1-0415-021A1-SD ● 4.15 21.51 36.00 74.00 6.00 140.00 73.25 0.76 5.18 h6 H9 860.1-0420-021A1-SD ● 4.20 21.76 36.00 74.00 6.00 140.00 73.24 0.76 5.18 h6 H9 860.1-0430-022A1-SD ● 4.30 22.28 36.00 74.00 6.00 140.00 73.22 0.78 5.18 h6 H9 860.1-0437-022A1-SD ● 4.37 22.65 36.00 74.00 6.00 140.00 73.21 0.79 5.19 h6 H9 860.1-0440-022A1-SD ● 4.40 22.80 36.00 74.00 6.00 140.00 73.20 0.80 5.18 h6 H9 860.1-0450-023A1-SD ● 4.50 23.32 36.00 74.00 6.00 140.00 73.18 0.82 5.18 h6 H9 860.1-0455-023A1-SD ● 4.55 23.58 36.00 74.00 6.00 140.00 73.17 0.83 5.18 h6 H9 860.1-0460-023A1-SD ● 4.60 23.84 36.00 74.00 6.00 140.00 73.16 0.84 5.18 h6 H9 860.1-0465-024A1-SD ● 4.65 24.10 36.00 74.00 6.00 140.00 73.15 0.85 5.18 h6 H9 860.1-0470-024A1-SD ● 4.70 24.36 36.00 74.00 6.00 140.00 73.14 0.86 5.18 h6 H9 ● = First choice ○ = Good choice 347
