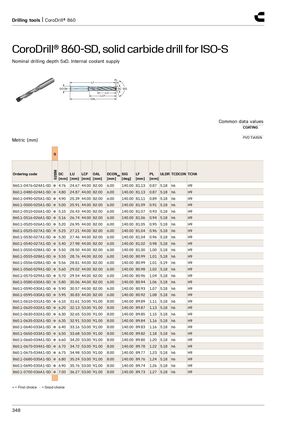

Drilling tools | CoroDrill® 860 CoroDrill® 860-SD, solid carbide drill for ISO-S​​ Nominal drilling depth 5xD. Internal coolant supply PL LF DCON DC SIG LU LCF OAL Common data values COATING PVD TiAlSiN Metric (mm) S S2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] 860.1-0476-024A1-SD ● 4.76 24.67 44.00 82.00 6.00 140.00 81.13 0.87 5.18 h6 H9 860.1-0480-024A1-SD ● 4.80 24.87 44.00 82.00 6.00 140.00 81.13 0.87 5.18 h6 H9 860.1-0490-025A1-SD ● 4.90 25.39 44.00 82.00 6.00 140.00 81.11 0.89 5.18 h6 H9 860.1-0500-025A1-SD ● 5.00 25.91 44.00 82.00 6.00 140.00 81.09 0.91 5.18 h6 H9 860.1-0510-026A1-SD ● 5.10 26.43 44.00 82.00 6.00 140.00 81.07 0.93 5.18 h6 H9 860.1-0516-026A1-SD ● 5.16 26.74 44.00 82.00 6.00 140.00 81.06 0.94 5.18 h6 H9 860.1-0520-026A1-SD ● 5.20 26.95 44.00 82.00 6.00 140.00 81.05 0.95 5.18 h6 H9 860.1-0525-027A1-SD ● 5.25 27.21 44.00 82.00 6.00 140.00 81.04 0.96 5.18 h6 H9 860.1-0530-027A1-SD ● 5.30 27.46 44.00 82.00 6.00 140.00 81.04 0.96 5.18 h6 H9 860.1-0540-027A1-SD ● 5.40 27.98 44.00 82.00 6.00 140.00 81.02 0.98 5.18 h6 H9 860.1-0550-028A1-SD ● 5.50 28.50 44.00 82.00 6.00 140.00 81.00 1.00 5.18 h6 H9 860.1-0555-028A1-SD ● 5.55 28.76 44.00 82.00 6.00 140.00 80.99 1.01 5.18 h6 H9 860.1-0556-028A1-SD ● 5.56 28.81 44.00 82.00 6.00 140.00 80.99 1.01 5.19 h6 H9 860.1-0560-029A1-SD ● 5.60 29.02 44.00 82.00 6.00 140.00 80.98 1.02 5.18 h6 H9 860.1-0570-029A1-SD ● 5.70 29.54 44.00 82.00 6.00 140.00 80.96 1.04 5.18 h6 H9 860.1-0580-030A1-SD ● 5.80 30.06 44.00 82.00 6.00 140.00 80.94 1.06 5.18 h6 H9 860.1-0590-030A1-SD ● 5.90 30.57 44.00 82.00 6.00 140.00 80.93 1.07 5.18 h6 H9 860.1-0595-030A1-SD ● 5.95 30.83 44.00 82.00 6.00 140.00 80.92 1.08 5.18 h6 H9 860.1-0610-031A1-SD ● 6.10 31.61 53.00 91.00 8.00 140.00 89.89 1.11 5.18 h6 H9 860.1-0620-032A1-SD ● 6.20 32.13 53.00 91.00 8.00 140.00 89.87 1.13 5.18 h6 H9 860.1-0630-032A1-SD ● 6.30 32.65 53.00 91.00 8.00 140.00 89.85 1.15 5.18 h6 H9 860.1-0635-032A1-SD ● 6.35 32.91 53.00 91.00 8.00 140.00 89.84 1.16 5.18 h6 H9 860.1-0640-033A1-SD ● 6.40 33.16 53.00 91.00 8.00 140.00 89.83 1.16 5.18 h6 H9 860.1-0650-033A1-SD ● 6.50 33.68 53.00 91.00 8.00 140.00 89.82 1.18 5.18 h6 H9 860.1-0660-034A1-SD ● 6.60 34.20 53.00 91.00 8.00 140.00 89.80 1.20 5.18 h6 H9 860.1-0670-034A1-SD ● 6.70 34.72 53.00 91.00 8.00 140.00 89.78 1.22 5.18 h6 H9 860.1-0675-034A1-SD ● 6.75 34.98 53.00 91.00 8.00 140.00 89.77 1.23 5.18 h6 H9 860.1-0680-035A1-SD ● 6.80 35.24 53.00 91.00 8.00 140.00 89.76 1.24 5.18 h6 H9 860.1-0690-035A1-SD ● 6.90 35.76 53.00 91.00 8.00 140.00 89.74 1.26 5.18 h6 H9 860.1-0700-036A1-SD ● 7.00 36.27 53.00 91.00 8.00 140.00 89.73 1.27 5.18 h6 H9 ● = First choice ○ = Good choice 348
