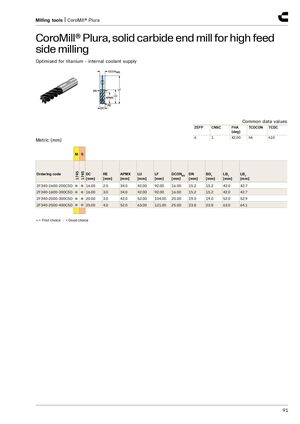

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ Optimised for titanium - internal coolant supply Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 6 1 42.00 h6 h10 Metric (mm) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2_ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F340-1600-200CSD ● ● 16.00 2.0 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F340-1600-300CSD ● ● 16.00 3.0 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F340-2000-300CSD ● ● 20.00 3.0 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2F340-2500-400CSD ● ● 25.00 4.0 52.0 63.00 121.00 25.00 23.8 23.8 63.0 64.1 ● = First choice ○ = Good choice 91
