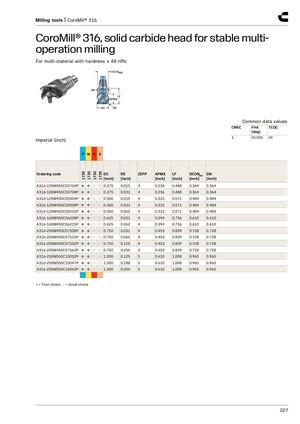

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for stable multi- operation milling​​ For multi-material with hardness ≤ 48 HRc Common data values CNSC FHA TCDC [deg] 1 50.000 h9 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] A316-10SM450C03704P ● ● ○ ○ 0.375 0.015 4 0.236 0.488 0.364 0.364 A316-10SM450C03708P ● ● ○ ○ 0.375 0.031 4 0.236 0.488 0.364 0.364 A316-12SM450C05004P ● ● ○ ○ 0.500 0.015 4 0.315 0.571 0.484 0.484 A316-12SM450C05008P ● ● ○ ○ 0.500 0.031 4 0.315 0.571 0.484 0.484 A316-12SM450C05015P ● ● ○ ○ 0.500 0.062 4 0.315 0.571 0.484 0.484 A316-16SM450C06208P ● ● ○ ○ 0.625 0.031 4 0.394 0.736 0.610 0.610 A316-16SM450C06215P ● ● ○ ○ 0.625 0.062 4 0.394 0.736 0.610 0.610 A316-20SM450C07508P ● ● ○ ○ 0.750 0.031 4 0.453 0.839 0.728 0.728 A316-20SM450C07515P ● ● ○ ○ 0.750 0.062 4 0.453 0.839 0.728 0.728 A316-20SM450C07532P ● ● ○ ○ 0.750 0.125 4 0.453 0.839 0.728 0.728 A316-20SM450C07563P ● ● ○ ○ 0.750 0.250 4 0.453 0.839 0.728 0.728 A316-25SM550C10032P ● ● ○ ○ 1.000 0.125 5 0.610 1.008 0.965 0.965 A316-25SM550C10047P ● ● ○ ○ 1.000 0.188 5 0.610 1.008 0.965 0.965 A316-25SM550C10063P ● ● ○ ○ 1.000 0.250 5 0.610 1.008 0.965 0.965 ● = First choice ○ = Good choice 227
