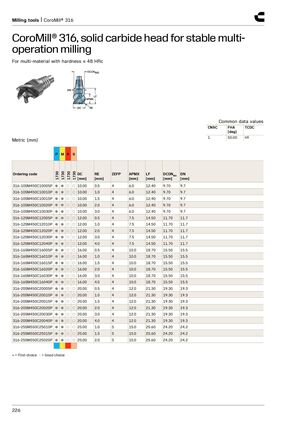

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for stable multi- operation milling​​ For multi-material with hardness ≤ 48 HRc Common data values CNSC FHA TCDC [deg] 1 50.00 h9 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10SM450C10005P ● ● ○ ○ 10.00 0.5 4 6.0 12.40 9.70 9.7 316-10SM450C10010P ● ● ○ ○ 10.00 1.0 4 6.0 12.40 9.70 9.7 316-10SM450C10015P ● ● ○ ○ 10.00 1.5 4 6.0 12.40 9.70 9.7 316-10SM450C10020P ● ● ○ ○ 10.00 2.0 4 6.0 12.40 9.70 9.7 316-10SM450C10030P ● ● ○ ○ 10.00 3.0 4 6.0 12.40 9.70 9.7 316-12SM450C12005P ● ● ○ ○ 12.00 0.5 4 7.5 14.50 11.70 11.7 316-12SM450C12010P ● ● ○ ○ 12.00 1.0 4 7.5 14.50 11.70 11.7 316-12SM450C12020P ● ● ○ ○ 12.00 2.0 4 7.5 14.50 11.70 11.7 316-12SM450C12030P ● ● ○ ○ 12.00 3.0 4 7.5 14.50 11.70 11.7 316-12SM450C12040P ● ● ○ ○ 12.00 4.0 4 7.5 14.50 11.70 11.7 316-16SM450C16005P ● ● ○ ○ 16.00 0.5 4 10.0 18.70 15.50 15.5 316-16SM450C16010P ● ● ○ ○ 16.00 1.0 4 10.0 18.70 15.50 15.5 316-16SM450C16015P ● ● ○ ○ 16.00 1.5 4 10.0 18.70 15.50 15.5 316-16SM450C16020P ● ● ○ ○ 16.00 2.0 4 10.0 18.70 15.50 15.5 316-16SM450C16030P ● ● ○ ○ 16.00 3.0 4 10.0 18.70 15.50 15.5 316-16SM450C16040P ● ● ○ ○ 16.00 4.0 4 10.0 18.70 15.50 15.5 316-20SM450C20005P ● ● ○ ○ 20.00 0.5 4 12.0 21.30 19.30 19.3 316-20SM450C20010P ● ● ○ ○ 20.00 1.0 4 12.0 21.30 19.30 19.3 316-20SM450C20015P ● ● ○ ○ 20.00 1.5 4 12.0 21.30 19.30 19.3 316-20SM450C20020P ● ● ○ ○ 20.00 2.0 4 12.0 21.30 19.30 19.3 316-20SM450C20030P ● ● ○ ○ 20.00 3.0 4 12.0 21.30 19.30 19.3 316-20SM450C20040P ● ● ○ ○ 20.00 4.0 4 12.0 21.30 19.30 19.3 316-25SM550C25010P ● ● ○ ○ 25.00 1.0 5 15.0 25.60 24.20 24.2 316-25SM550C25015P ● ● ○ ○ 25.00 1.5 5 15.0 25.60 24.20 24.2 316-25SM550C25020P ● ● ○ ○ 25.00 2.0 5 15.0 25.60 24.20 24.2 ● = First choice ○ = Good choice 226
