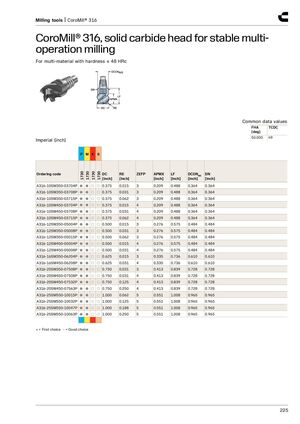

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for stable multi- operation milling​​ For multi-material with hardness ≤ 48 HRc Common data values FHA TCDC [deg] 50.000 h9 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] A316-10SM350-03704P ● ● ○ ○ 0.375 0.015 3 0.209 0.488 0.364 0.364 A316-10SM350-03708P ● ● ○ ○ 0.375 0.031 3 0.209 0.488 0.364 0.364 A316-10SM350-03715P ● ● ○ ○ 0.375 0.062 3 0.209 0.488 0.364 0.364 A316-10SM450-03704P ● ● ○ ○ 0.375 0.015 4 0.209 0.488 0.364 0.364 A316-10SM450-03708P ● ● ○ ○ 0.375 0.031 4 0.209 0.488 0.364 0.364 A316-10SM450-03715P ● ● ○ ○ 0.375 0.062 4 0.209 0.488 0.364 0.364 A316-12SM350-05004P ● ● ○ ○ 0.500 0.015 3 0.276 0.575 0.484 0.484 A316-12SM350-05008P ● ● ○ ○ 0.500 0.031 3 0.276 0.575 0.484 0.484 A316-12SM350-05015P ● ● ○ ○ 0.500 0.062 3 0.276 0.575 0.484 0.484 A316-12SM450-05004P ● ● ○ ○ 0.500 0.015 4 0.276 0.575 0.484 0.484 A316-12SM450-05008P ● ● ○ ○ 0.500 0.031 4 0.276 0.575 0.484 0.484 A316-16SM350-06204P ● ● ○ ○ 0.625 0.015 3 0.335 0.736 0.610 0.610 A316-16SM450-06208P ● ● ○ ○ 0.625 0.031 4 0.335 0.736 0.610 0.610 A316-20SM350-07508P ● ● ○ ○ 0.750 0.031 3 0.413 0.839 0.728 0.728 A316-20SM450-07508P ● ● ○ ○ 0.750 0.031 4 0.413 0.839 0.728 0.728 A316-20SM450-07532P ● ● ○ ○ 0.750 0.125 4 0.413 0.839 0.728 0.728 A316-20SM450-07563P ● ● ○ ○ 0.750 0.250 4 0.413 0.839 0.728 0.728 A316-25SM550-10015P ● ● ○ ○ 1.000 0.062 5 0.551 1.008 0.965 0.965 A316-25SM550-10032P ● ● ○ ○ 1.000 0.125 5 0.551 1.008 0.965 0.965 A316-25SM550-10047P ● ● ○ ○ 1.000 0.188 5 0.551 1.008 0.965 0.965 A316-25SM550-10063P ● ● ○ ○ 1.000 0.250 5 0.551 1.008 0.965 0.965 ● = First choice ○ = Good choice 225
