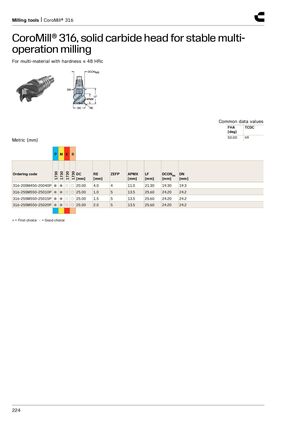

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for stable multi- operation milling​​ For multi-material with hardness ≤ 48 HRc Common data values FHA TCDC [deg] 50.00 h9 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-20SM450-20040P ● ● ○ ○ 20.00 4.0 4 11.0 21.30 19.30 19.3 316-25SM550-25010P ● ● ○ ○ 25.00 1.0 5 13.5 25.60 24.20 24.2 316-25SM550-25015P ● ● ○ ○ 25.00 1.5 5 13.5 25.60 24.20 24.2 316-25SM550-25020P ● ● ○ ○ 25.00 2.0 5 13.5 25.60 24.20 24.2 ● = First choice ○ = Good choice 224
