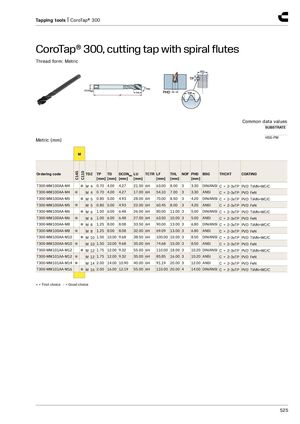

Tapping tools | CoroTap® 300 CoroTap® 300, cutting tap with spiral flutes​​ Thread form: Metric Common data values SUBSTRATE HSS-PM Metric (mm) M C145 C110 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT COATING [mm] [mm] [mm] [mm] [mm] [mm] [mm] T300-MM100AA-M4 ● M 4 0.70 4.00 4.27 21.50 6H 63.00 8.00 3 3.30 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AA-M4 ● M 4 0.70 4.00 4.27 17.00 6H 54.10 7.00 3 3.30 ANSI C = 2-3xTP PVD FeN T300-MM100AA-M5 ● M 5 0.80 5.00 4.93 28.00 6H 70.00 8.50 3 4.20 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AA-M5 ● M 5 0.80 5.00 4.93 22.00 6H 60.45 8.00 3 4.20 ANSI C = 2-3xTP PVD FeN T300-MM100AA-M6 ● M 6 1.00 6.00 6.48 26.00 6H 80.00 11.00 3 5.00 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AA-M6 ● M 6 1.00 6.00 6.48 27.00 6H 63.50 10.00 3 5.00 ANSI C = 2-3xTP PVD FeN T300-MM100AA-M8 ●M8 1.25 8.00 8.08 33.50 6H 90.00 13.00 3 6.80 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AA-M8 ● M 8 1.25 8.00 8.08 32.00 6H 69.09 13.00 3 6.80 ANSI C = 2-3xTP PVD FeN T300-MM100AA-M10 ● M 10 1.50 10.00 9.68 38.50 6H 100.00 15.00 3 8.50 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM100AA-M10 ● M 10 1.50 10.00 9.68 35.00 6H 74.68 15.00 3 8.50 ANSI C = 2-3xTP PVD FeN T300-MM101AA-M12 ● M 12 1.75 12.00 9.32 55.00 6H 110.00 18.00 3 10.20 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C T300-MM101AA-M12 ● M 12 1.75 12.00 9.32 35.00 6H 85.85 16.00 3 10.20 ANSI C = 2-3xTP PVD FeN T300-MM101AA-M14 ● M 14 2.00 14.00 10.90 40.00 6H 91.19 20.00 3 12.00 ANSI C = 2-3xTP PVD FeN T300-MM101AA-M16 ● M 16 2.00 16.00 12.19 55.00 6H 110.00 20.00 4 14.00 DIN/ANSI C = 2-3xTP PVD TiAlN+WC/C ● = First choice ○ = Good choice 525
