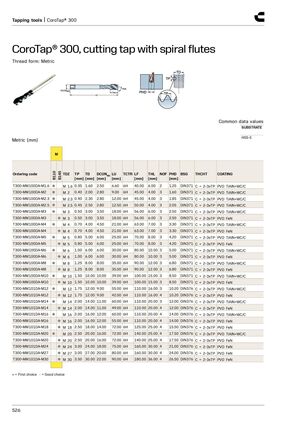

Tapping tools | CoroTap® 300 CoroTap® 300, cutting tap with spiral flutes​​ Thread form: Metric Common data values SUBSTRATE HSS-E Metric (mm) M B110 B145 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT COATING [mm] [mm] [mm] [mm] [mm] [mm] [mm] T300-MM100DA-M1.6 ● M 1.6 0.35 1.60 2.50 6.60 6H 40.00 6.00 2 1.25 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M2 ● M 2 0.40 2.00 2.80 9.00 6H 45.00 4.00 3 1.60 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M2.3 ● M 2.3 0.40 2.30 2.80 12.00 6H 45.00 4.00 3 1.85 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M2.5 ● M 2.5 0.45 2.50 2.80 12.50 6H 50.00 4.00 3 2.05 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M3 ● M 3 0.50 3.00 3.50 18.00 6H 56.00 6.00 3 2.50 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M3 ●M3 0.50 3.00 3.50 18.00 6H 56.00 6.00 3 2.50 DIN371 C = 2-3xTP PVD FeN T300-MM100DA-M4 ● M 4 0.70 4.00 4.50 21.00 6H 63.00 7.00 3 3.30 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M4 ●M4 0.70 4.00 4.50 21.00 6H 63.00 7.00 3 3.30 DIN371 C = 2-3xTP PVD FeN T300-MM100DA-M5 ● M 5 0.80 5.00 6.00 25.00 6H 70.00 8.00 3 4.20 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M5 ●M5 0.80 5.00 6.00 25.00 6H 70.00 8.00 3 4.20 DIN371 C = 2-3xTP PVD FeN T300-MM100DA-M6 ● M 6 1.00 6.00 6.00 30.00 6H 80.00 10.00 3 5.00 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M6 ●M6 1.00 6.00 6.00 30.00 6H 80.00 10.00 3 5.00 DIN371 C = 2-3xTP PVD FeN T300-MM100DA-M8 ● M 8 1.25 8.00 8.00 35.00 6H 90.00 12.00 3 6.80 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M8 ●M8 1.25 8.00 8.00 35.00 6H 90.00 12.00 3 6.80 DIN371 C = 2-3xTP PVD FeN T300-MM100DA-M10 ● M 10 1.50 10.00 10.00 39.00 6H 100.00 15.00 3 8.50 DIN371 C = 2-3xTP PVD TiAlN+WC/C T300-MM100DA-M10 ● M 10 1.50 10.00 10.00 39.00 6H 100.00 15.00 3 8.50 DIN371 C = 2-3xTP PVD FeN T300-MM101DA-M12 ● M 12 1.75 12.00 9.00 55.00 6H 110.00 16.00 3 10.20 DIN376 C = 2-3xTP PVD TiAlN+WC/C T300-MM101DA-M12 ● M 12 1.75 12.00 9.00 42.00 6H 110.00 16.00 4 10.20 DIN376 C = 2-3xTP PVD FeN T300-MM101DA-M14 ● M 14 2.00 14.00 11.00 60.00 6H 110.00 20.00 3 12.00 DIN376 C = 2-3xTP PVD TiAlN+WC/C T300-MM101DA-M14 ● M 14 2.00 14.00 11.00 49.00 6H 110.00 20.00 4 12.00 DIN376 C = 2-3xTP PVD FeN T300-MM101DA-M16 ● M 16 2.00 16.00 12.00 60.00 6H 110.00 20.00 4 14.00 DIN376 C = 2-3xTP PVD TiAlN+WC/C T300-MM101DA-M16 ● M 16 2.00 16.00 12.00 55.00 6H 110.00 20.00 4 14.00 DIN376 C = 2-3xTP PVD FeN T300-MM101DA-M18 ● M 18 2.50 18.00 14.00 72.00 6H 125.00 25.00 4 15.50 DIN376 C = 2-3xTP PVD FeN T300-MM101DA-M20 ● M 20 2.50 20.00 16.00 72.00 6H 140.00 25.00 4 17.50 DIN376 C = 2-3xTP PVD TiAlN+WC/C T300-MM101DA-M20 ● M 20 2.50 20.00 16.00 72.00 6H 140.00 25.00 4 17.50 DIN376 C = 2-3xTP PVD FeN T300-MM101DA-M24 ● M 24 3.00 24.00 18.00 75.00 6H 160.00 30.00 4 21.00 DIN376 C = 2-3xTP PVD FeN T300-MM101DA-M27 ● M 27 3.00 27.00 20.00 80.00 6H 160.00 30.00 4 24.00 DIN376 C = 2-3xTP PVD FeN T300-MM101DA-M30 ● M 30 3.50 30.00 22.00 90.00 6H 180.00 36.00 4 26.50 DIN376 C = 2-3xTP PVD FeN ● = First choice ○ = Good choice 526
