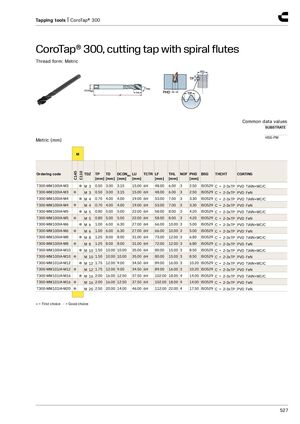

Tapping tools | CoroTap® 300 CoroTap® 300, cutting tap with spiral flutes​​ Thread form: Metric Common data values SUBSTRATE HSS-PM Metric (mm) M C145 C110 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT COATING [mm] [mm] [mm] [mm] [mm] [mm] [mm] T300-MM100IA-M3 ● M 3 0.50 3.00 3.15 15.00 6H 48.00 6.00 3 2.50 ISO529 C = 2-3xTP PVD TiAlN+WC/C T300-MM100IA-M3 ● M 3 0.50 3.00 3.15 15.00 6H 48.00 6.00 3 2.50 ISO529 C = 2-3xTP PVD FeN T300-MM100IA-M4 ● M 4 0.70 4.00 4.00 19.00 6H 53.00 7.00 3 3.30 ISO529 C = 2-3xTP PVD TiAlN+WC/C T300-MM100IA-M4 ● M 4 0.70 4.00 4.00 19.00 6H 53.00 7.00 3 3.30 ISO529 C = 2-3xTP PVD FeN T300-MM100IA-M5 ● M 5 0.80 5.00 5.00 22.00 6H 58.00 8.00 3 4.20 ISO529 C = 2-3xTP PVD TiAlN+WC/C T300-MM100IA-M5 ● M 5 0.80 5.00 5.00 22.00 6H 58.00 8.00 3 4.20 ISO529 C = 2-3xTP PVD FeN T300-MM100IA-M6 ●M6 1.00 6.00 6.30 27.00 6H 66.00 10.00 3 5.00 ISO529 C = 2-3xTP PVD TiAlN+WC/C T300-MM100IA-M6 ● M 6 1.00 6.00 6.30 27.00 6H 66.00 10.00 3 5.00 ISO529 C = 2-3xTP PVD FeN T300-MM100IA-M8 ● M 8 1.25 8.00 8.00 31.00 6H 73.00 12.00 3 6.80 ISO529 C = 2-3xTP PVD TiAlN+WC/C T300-MM100IA-M8 ● M 8 1.25 8.00 8.00 31.00 6H 72.00 12.00 3 6.80 ISO529 C = 2-3xTP PVD FeN T300-MM100IA-M10 ● M 10 1.50 10.00 10.00 35.00 6H 80.00 15.00 3 8.50 ISO529 C = 2-3xTP PVD TiAlN+WC/C T300-MM100IA-M10 ● M 10 1.50 10.00 10.00 35.00 6H 80.00 15.00 3 8.50 ISO529 C = 2-3xTP PVD FeN T300-MM101IA-M12 ● M 12 1.75 12.00 9.00 34.50 6H 89.00 16.00 3 10.20 ISO529 C = 2-3xTP PVD TiAlN+WC/C T300-MM101IA-M12 ● M 12 1.75 12.00 9.00 34.50 6H 89.00 16.00 3 10.20 ISO529 C = 2-3xTP PVD FeN T300-MM101IA-M16 ● M 16 2.00 16.00 12.50 37.50 6H 102.00 18.00 4 14.00 ISO529 C = 2-3xTP PVD TiAlN+WC/C T300-MM101IA-M16 ● M 16 2.00 16.00 12.50 37.50 6H 102.00 18.00 4 14.00 ISO529 C = 2-3xTP PVD FeN T300-MM101IA-M20 ● M 20 2.50 20.00 14.00 46.00 6H 112.00 22.00 4 17.50 ISO529 C = 2-3xTP PVD FeN ● = First choice ○ = Good choice 527
