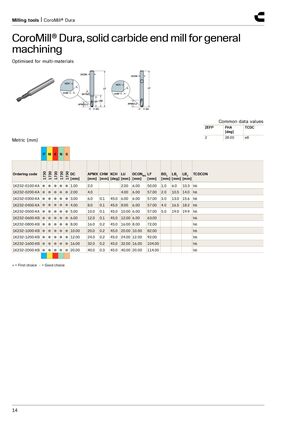

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for multi-materials Common data values ZEFP FHA TCDC [deg] 2 28.00 e8 Metric (mm) P M K N S 1730 1730 1730 1730 1730 Ordering code DC APMX CHW KCH LU DCONMS LF BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [mm] 1K232-0100-XA ● ● ● ● ● 1.00 2.0 2.00 6.00 50.00 1.0 6.0 10.3 h6 1K232-0200-XA ● ● ● ● ● 2.00 4.0 4.00 6.00 57.00 2.0 10.5 14.0 h6 1K232-0300-XA ● ● ● ● ● 3.00 6.0 0.1 45.0 6.00 6.00 57.00 3.0 13.0 15.6 h6 1K232-0400-XA ● ● ● ● ● 4.00 8.0 0.1 45.0 8.00 6.00 57.00 4.0 16.5 18.2 h6 1K232-0500-XA ● ● ● ● ● 5.00 10.0 0.1 45.0 10.00 6.00 57.00 5.0 19.0 19.9 h6 1K232-0600-XB ● ● ● ● ● 6.00 12.0 0.1 45.0 12.00 6.00 63.00 h6 1K232-0800-XB ● ● ● ● ● 8.00 16.0 0.2 45.0 16.00 8.00 72.00 h6 1K232-1000-XB ● ● ● ● ● 10.00 20.0 0.2 45.0 20.00 10.00 82.00 h6 1K232-1200-XB ● ● ● ● ● 12.00 24.0 0.2 45.0 24.00 12.00 92.00 h6 1K232-1600-XB ● ● ● ● ● 16.00 32.0 0.2 45.0 32.00 16.00 104.00 h6 1K232-2000-XB ● ● ● ● ● 20.00 40.0 0.3 45.0 40.00 20.00 114.00 h6 ● = First choice ○ = Good choice 14
