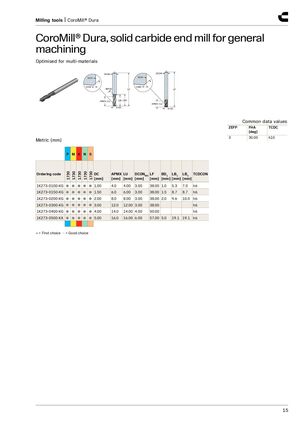

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for multi-materials DCON DCON KCH KCH CHW CHW BHTA2 LF LF APMX / LU LB1 LB2 APMX / LU DC DC Common data values ZEFP FHA TCDC [deg] 3 30.00 h10 Metric (mm) P M K N S 1730 1730 1730 1730 1730 Ordering code DC APMX LU DCONMS LF BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1K273-0100-XG ● ● ● ● ● 1.00 4.0 4.00 3.00 38.00 1.0 5.3 7.0 h6 1K273-0150-XG ● ● ● ● ● 1.50 6.0 6.00 3.00 38.00 1.5 8.7 8.7 h6 1K273-0200-XG ● ● ● ● ● 2.00 8.0 8.00 3.00 38.00 2.0 9.6 10.0 h6 1K273-0300-XG ● ● ● ● ● 3.00 12.0 12.00 3.00 38.00 h6 1K273-0400-XG ● ● ● ● ● 4.00 14.0 14.00 4.00 50.00 h6 1K273-0500-XA ● ● ● ● ● 5.00 16.0 16.00 6.00 57.00 5.0 19.1 19.1 h6 ● = First choice ○ = Good choice 15
